Key Benefits of Paper Covered Wire in Power Equipment

I. Introduction

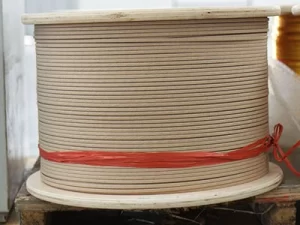

Paper covered wire, as a classic insulation material for the manufacture of windings in power transformers and large electrical equipment, has a history of application spanning over a century. Despite the emergence of new insulation materials such as polyimide film and Nomex paper in recent years, paper covered wire, with its unique comprehensive advantages, still occupies an irreplaceable dominant position in the high-voltage and ultra-high-voltage power transformer field.

This article systematically elaborates on the core advantages of paper covered wire in power equipment applications, conducting in-depth analysis from multiple dimensions such as electrical insulation performance, thermal performance, mechanical reliability, economy, and sustainability, providing professional reference for power equipment design engineers and procurement decision-makers.

---

II. Excellent Electrical Insulation Performance

2.1 High Dielectric Strength

The core advantage of paper covered wire lies in its superior electrical insulation performance. The breakdown electric field strength of Kraft paper can reach over 40 kV/mm, and with the addition of transformer oil, the dielectric strength of the composite insulation system can be further increased to 50–60 kV/mm.

This excellent insulation performance allows paper insulated wire to withstand extremely high operating voltages and lightning impulse voltages. In power transformers with voltage levels of 500 kV and above, the composite insulation system consisting of paper insulated wire and transformer oil is the only reliable solution proven by decades of engineering practice.

2.2 Stable Dielectric Loss Characteristics

The dielectric loss factor (tanδ) of Kraft paper is approximately 0.002 to 0.005 under 90°C oil testing conditions, which is relatively low. This means that paper insulated wire experiences less energy loss when operating in an AC electric field, helping to reduce transformer no-load loss.

Compared with synthetic insulation materials, paper insulated wire exhibits more stable dielectric loss characteristics, is less affected by temperature and humidity, and maintains consistent insulation performance over long-term operation.

2.3 Excellent Partial Discharge Performance

In high-voltage and ultra-high-voltage transformers, partial discharge is a key factor affecting insulation life. The “paper-oil” composite insulation system, composed of paper insulated wire and transformer oil, effectively suppresses the generation and development of partial discharge.

The porous fibrous structure of cable paper allows it to form a uniform composite insulation after impregnation with transformer oil, eliminating air gaps and interlayers, effectively reducing the probability of partial discharge. This characteristic is crucial for ensuring the long-term safe operation of high-voltage transformers.

---

III. Superior Thermal Performance

3.1 Thermal Class and Operating Temperature

The thermal class of paper insulated wire mainly depends on the type of cable paper and impregnating resin. Traditional oil-impregnated paper insulation systems are classified as Class A (105°C), with a maximum hot spot temperature reaching 105°C. Under normal operating conditions, the winding temperature is typically controlled below 95°C.

For applications requiring higher operating temperatures, modified cable paper or HPFF (High-Pressure Fully Cured Paper) technology can be used to upgrade the thermal class to Class B (130°C). This temperature range can meet the operating requirements of most power transformers.

3.2 Excellent High-Temperature Aging Characteristics

The aging mechanism of cable paper in transformer oil environment is mainly cellulose thermal degradation and oxidation reaction. Studies have shown that for every 10°C increase in temperature between 80°C and 100°C, the chemical aging rate of oil-impregnated paper insulation approximately doubles.

Thanks to the high heat transfer efficiency and suppressed oxidation reaction in the oil-immersion environment, the aging rate of paper insulated wire windings is relatively slow at normal operating temperatures, and the overall service life of the transformer can reach over 30 years. This is an advantage that other insulation materials cannot match.

3.3 Excellent Thermal Conductivity

The thermal conductivity of cable paper is approximately 0.15–0.20 W/(m·K), which is lower than that of metallic conductors, but when combined with transformer oil, it forms an efficient heat dissipation channel.

In power transformers with forced oil circulation cooling, the heat generated by paper insulated wire windings can be quickly transferred to the radiator through oil circulation, effectively controlling the winding temperature rise and preventing local overheating.

---

IV. Reliable Mechanical Performance

4.1 Excellent Short-Circuit Electrodynamic Capability

Power transformers may encounter sudden short-circuit faults during operation. The peak short-circuit current can reach 10 to 25 times the rated current, generating huge electrodynamic forces on the winding conductors.

The multi-layer paper insulation structure of paper insulated wire, combined with transformer oil impregnation, forms a robust composite. The bonding effect of the paper layers gives the entire winding sufficient mechanical integrity. In a 1000 MVA giant transformer, the electrodynamic force that the winding withstands at the moment of a short circuit can reach tens of tons, and paper insulated wire windings can effectively resist this mechanical impact, preventing winding deformation, displacement, or insulation damage.

4.2 Excellent Vibration Resistance

Power transformers generate continuous vibration during operation, especially when the load changes. The paper insulation layer of paper insulated wire windings possesses excellent flexibility and damping characteristics, capable of absorbing and attenuating vibration energy and preventing cumulative damage to the insulation structure from vibration fatigue.

In harsh vibration environments such as rail transit traction transformers, specially designed paper insulated wire windings can maintain long-term reliable mechanical performance.

4.3 Good Impact Resistance

Paper insulated wires may be subjected to mechanical shocks during transportation, installation, and operation. The fibrous structure of cable paper gives it excellent impact resistance, enabling it to maintain the integrity of the insulation layer under a certain range of impact loads.

Compared with brittle ceramic insulation or rigid synthetic insulation, the toughness of paper insulated wires makes them less prone to insulation layer cracking or peeling during assembly and use.

---

V. Significant Economic Advantages

5.1 Material Cost Advantage

The main raw materials for paper insulated wires—cable paper and transformer oil—are both mature industrial products with relatively stable prices and low costs. Compared with high-performance insulation materials such as polyimide film and Nomex paper, paper insulated wire has a significant cost advantage of 30% to 50%.

For large-scale applications of power transformers and distribution transformers, the reduction in material costs translates to optimized overall manufacturing costs and enhanced market competitiveness.

5.2 Mature Manufacturing Process

The manufacturing process of paper insulated wire has undergone nearly a century of development and refinement, resulting in a highly mature and standardized production system. Strong equipment versatility, mature process parameters, and skilled operators contribute to stable product quality and controllable production costs.

Compared with the potential process uncertainties associated with new insulation materials, the manufacturing risk of paper insulated wire is lower and easier for manufacturers to effectively control.

5.3 Low Maintenance Costs

The inspection and maintenance of paper insulated wire windings have well-established industry standards and mature practical experience. When transformers require maintenance, the processing of paper insulated wire windings (such as winding drying and impregnation) is relatively simple, resulting in lower maintenance costs.

In addition, the failure modes of paper insulated wire windings are relatively clear, which facilitates preventive maintenance through regular testing (such as oil chromatography analysis and dielectric loss testing), reducing the risk of sudden failures and maintenance costs.

---

VI. Wide Application Adaptability

6.1 Full Voltage Level Coverage

From low-voltage distribution transformers (6–10 kV) to ultra-high-voltage power transformers (500–1000 kV), paper insulated wires have mature specifications and corresponding processes:

Voltage Level	Paper Insulation Thickness	Typical Application
6 kV – 35 kV	0.45 mm – 1.25 mm	Distribution Transformer
66 kV – 220 kV	1.35 mm – 3.85 mm	Power Transformer
330 kV – 750 kV	2.95 mm – 5.00 mm	Ultra-High Voltage Transformer
±800 kV and above	≥5.00 mm	Extra-High Voltage DC Converter

6.2 Compatible with Multiple Transformer Types

Paper insulated wire is widely used in various types of power transformers:

• Oil-immersed power transformers: The most classic and primary application area.
• Power distribution transformers: Widely used basic equipment in power grids.
• Electric furnace transformers: Industrial high-current output applications.
• Rectifier transformers: DC power supply for electrolysis, electroplating, etc.
• Rail transit traction transformers: Core equipment in railway power supply systems.
• Specialty transformers: Marine transformers, mining transformers, etc.

6.3 Perfect Compatibility with Transformer Oil Systems

The synergistic effect of paper insulated wire and transformer oil is one of its core advantages. Transformer oil fills the capillary pores of the cable paper, significantly improving the dielectric strength of the composite insulation; at the same time, the paper layer acts as a supporting skeleton for the oil, preventing oil leakage and slowing down the oil aging process.

This synergistic mechanism of the “paper-oil” composite insulation system enables the insulation reliability of power transformers to reach an unprecedented level, which is difficult for any other single insulation material to completely replace.

---

VII. Environmental and Sustainable Development Advantages

7.1 Material Renewability

Cable paper uses sulfate wood pulp as raw material, which is a renewable resource. Compared with synthetic insulation materials based on petrochemical raw materials, the raw material source of paper insulated wire is more environmentally friendly and sustainable.

7.2 End-of-Life Processing

After the transformer’s life cycle, paper insulated wire windings can be professionally dismantled and processed. The transformer oil can be recycled and reused, and the cable paper can be treated as industrial solid waste in a harmless manner. The overall disposal plan is mature and feasible.

7.3 Long-Term Reliable Operation Reduces Resource Waste

The service life of paper insulated transformers can typically reach over 30 years, significantly reducing resource consumption and waste generation caused by frequent equipment replacement. From a full life cycle perspective, the environmental footprint of paper insulated transformers is relatively low.

---

VIII. Conclusion

Paper insulated wire possesses the following core advantages in power equipment applications:

1. Excellent Electrical Insulation Performance: High dielectric strength, low dielectric loss, and excellent partial discharge characteristics.
2. Stable and Reliable Thermal Performance: Suitable thermal class for mainstream applications, slow high-temperature aging, and excellent heat dissipation.
3. Superior Mechanical Performance: Strong resistance to short-circuit electrodynamic forces, vibration resistance, and shock resistance.
4. Significant Economic Advantages: Low material cost, mature manufacturing process, and low maintenance cost.
5. Wide Application Compatibility: Covers all voltage levels, adaptable to various transformer types, and perfectly compatible with transformer oil.
6. Environmentally Friendly and Sustainable: Renewable materials, mature disposal solutions, and environmentally friendly throughout its entire life cycle.

These comprehensive advantages make paper insulated wire irreplaceable in the power transformer field. For power equipment manufacturers and operators seeking high reliability, cost-effectiveness, and long-term stable operation, paper insulated wire is undoubtedly a wise choice for winding insulation materials.
