Heating, ventilation, and air conditioning (HVAC) systems are indispensable equipment in modern buildings, and motors are the power core of these systems. From compressors and indoor/outdoor fans to water pumps, all types of motors in air conditioning systems rely on high-quality winding wire to ensure reliable operation.
Air conditioning motors operate in extremely harsh environments: high temperatures, high humidity, refrigerant corrosion, and variable frequency pulse voltage challenges place far higher demands on the performance of the winding wire than on ordinary motors. This article provides a systematic technical guide for motor engineers and purchasing decision-makers, covering six dimensions: operating environment, material selection, insulation systems, refrigerant compatibility, manufacturing processes, and selection guidelines.
I. Operating Environment of Air Conditioner Motors
1.1 Temperature Challenges
Air conditioner motors generate a large amount of heat during operation:
- Compressor Motors: Operating temperature can reach 120-150°C
- Outdoor Fan Motors: Summer ambient temperature can reach over 50°C, plus the motor’s own heat generation
- Indoor Fan Motors: Operating temperature is relatively low, but still needs to withstand long-term continuous operation
1.2 Refrigerant Corrosion
Compressor motors are directly immersed in refrigerant, and the chemical corrosion of the winding wire insulation varnish by the refrigerant is the main challenge:
- Traditional Refrigerants: R22, which has a certain degree of corrosiveness to the insulation varnish
- New Refrigerants: R410A, R32, with higher operating pressure and stronger chemical activity
- Environmentally Friendly Refrigerants: R290 (propane), R134a, with higher compatibility requirements for the insulation varnish
1.3 Humidity Challenges
Air conditioning systems operate in high humidity environments, requiring the winding wire to have good moisture resistance:
- In the plum rain season in southern China, relative humidity can reach over 90%
- High humidity accelerates the aging of insulation materials
- Moisture and refrigerant work together to increase corrosiveness
1.4 Variable Frequency Operation
The widespread use of variable frequency air conditioners places additional electrical requirements on winding wire:
- High-frequency pulse voltage (dv/dt stress)
- Corona discharge risk
- Thermal cycling caused by frequent start-stop cycles
II. Conductor Material Selection
2.1 Copper Conductor
Copper conductor is the mainstream choice for air conditioner motor windings:
- Conductivity: ≥97% IACS
- Advantages: High conductivity, high strength, good weldability
- Applicable Scenarios: Compressor motors, variable frequency motors, high-efficiency motors
2.2 Aluminum Conductor
Aluminum conductor is gaining increasing attention in cost-sensitive air conditioner motor applications:
- Conductivity: ≥61% IACS
- Advantages: Low cost, lightweight (approximately 30% of copper)
- Applicable Scenarios: Indoor and outdoor fan motors, cost-sensitive products
2.3 Copper-Clad Aluminum Conductor
- Structure: Aluminum core with an outer copper layer
- Applicable Scenarios: Medium-power motors, suitable for applications where cost and weight are critical
III. Insulation System
3.1 Insulation Class Requirements
Commonly used insulation classes for air conditioning motors:
| Insulation Class | Maximum Operating Temperature | Typical Applications |
|---|---|---|
| Class B | 130°C | Ordinary indoor fan motors |
| Class F | 155°C | Mainstream air conditioning motors (compressors, outdoor fans) |
| Class H | 180°C | Variable frequency compressors, high-temperature conditions |
3.2 Commonly Used Insulating Varnish Types
Polyesterimide (PEIW/EIW):
- Insulation Class: Class 155 (F grade)
- Characteristics: Good heat resistance, chemical resistance, and refrigerant resistance
- Applications: Fixed frequency air conditioning compressor motors
Polyesterimide/Polyamide-imide (EI/AIW):
- Insulation Class: Class 180/200 (H class and above)
- Features: Excellent high temperature resistance and withstands variable frequency pulse voltage
- Applications: Variable frequency air conditioning compressor motors
Polyurethane (UEW):
- Insulation Class: Class 130/155
- Features: Can be directly soldered
- Applications: Small fan motors
3.3 Composite Insulation
Under harsh working conditions, a composite insulation structure of enameled wire + film covering is often used:
- Enameled wire + polyester film (Class F)
- Suitable for special working conditions such as high voltage and variable frequency drives
IV. Refrigerant Compatibility
4.1 Refrigerant Type and Compatibility
| Refrigerant Type | Chemical Properties | Requirements for Winding Wire |
|---|---|---|
| R22 | Chlorofluorocarbons, moderately corrosive | Conventional refrigerant-resistant insulating varnish |
| R410A | Near-azeotropic mixture, high working pressure | High refrigerant resistance |
| R32 | Flammable, high operating pressure | High refrigerant resistance |
| R134a | Environmentally friendly, highly chemically active | Excellent refrigerant resistance |
| R290 (Propane) | Natural refrigerant, flammable | Good compatibility, no special treatment |
4.2 Refrigerant Resistance Test
The refrigerant resistance of the winding wire must pass the following tests:
Immersion Test: Immerse the winding wire sample in refrigerant and maintain it at a set temperature for a certain period of time (usually 1000-2000 hours).
Performance Test: After immersion, test the breakdown voltage, flexibility, enamel coating adhesion, and other indicators.
Judgment Criteria: After immersion, the breakdown voltage decreases by no more than 25% of the initial value, and there is no significant decrease in flexibility.
4.3 Synergistic Effect of Refrigerant and Refrigeration Oil
In actual air conditioning systems, refrigerant and refrigeration oil coexist, and their synergistic effect on the winding wire is more complex:
- POE Oil (Polyol Ester): Used in conjunction with R410A and R32, it has stronger solubility for insulating varnish
- PAG Oil (Polyalkylene Glycol): Used in conjunction with R134a
- The mixed environment of refrigerant and refrigeration oil must be considered during testing
V. Key Points of Manufacturing Process
5.1 Winding Process
Tension Control: Air conditioning motor winding wires are usually thin (0.1-1.5mm), and tension control is crucial:
- Excessive tension: enamel coating is damaged, and the conductor is stretched and thinned
- Insufficient tension: the winding is loose, affecting the winding quality
Winding Speed: Attention must be paid to the protection of enamel coating during high-speed winding.

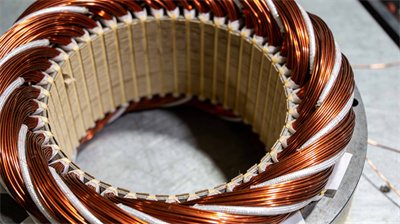

5.2 Slot Insertion Process
Slot Insulation: Ensure the integrity of the slot insulation material to prevent direct contact between the winding wire and the iron core.
End Shaping: Winding ends must be neat to avoid inter-turn short circuits.
5.3 Impregnation Process
VPI (Vacuum Pressure Impregnation):
- Vacuum degassing ensures full penetration of the insulating varnish
- Pressure impregnation improves impregnation quality
- Suitable for compressor motors
Drip Impregnation:
- Suitable for small fan motors
- Simple process, low cost
5.4 Drying and Curing
Temperature Profile: Set a temperature profile based on the curing characteristics of the insulating varnish.
Time Control: Ensure the insulating varnish is fully cured and avoid residual solvent.
VI. Application Scenarios and Selection Guide
6.1 Compressor Motor
The compressor motor is the motor with the most demanding operating conditions in the air conditioning system:
Requirements:
- Refrigerant resistance: must pass the refrigerant immersion test
- Insulation class: Class F/H
- Variable frequency pulse resistance: variable frequency compressors must use a corona-resistant insulation system
Recommendation:
- Conductor: Enameled copper wire
- Insulation: EI/AIW (Class 180/200)
- Refrigerant compatibility: select according to the specific refrigerant type
6.2 Outdoor Fan Motor
Requirements:
- High temperature resistance: high ambient temperature in summer
- Moisture resistance: outdoor environment
- Weather resistance: UV resistant, anti-aging
Recommendation:
- Conductor: Enameled copper wire or enameled aluminum wire
- Insulation: PEIW/EIW (Class 155)
6.3 Indoor Fan Motor
Requirements:
- Low noise
- Long lifespan
- Cost-effectiveness
Recommendation:
- Conductor: Enameled copper wire or enameled aluminum wire
- Insulation: PEW or UEW (Class 130/155)
6.4 Water Pump Motor
Requirements:
- Water resistance
- Long-term continuous operation reliability
Recommendation:
- Conductor: Enameled copper wire
- Insulation: PEIW/EIW (Class 155)
6.5 Selection Confirmation Checklist
- Motor type (compressor, fan, water pump)
- Refrigerant type (R22, R410A, R32, R134a, R290)
- Refrigeration oil type (POE, PAG)
- Insulation class requirements
- Variable frequency / fixed frequency
- Certification requirements (UL, IEC, RoHS, etc.)
Conclusion
The selection of air conditioning motor winding wire directly affects the reliability, efficiency, and service life of the air conditioning system. Under multiple challenges such as refrigerant corrosion, high temperature and humidity, and variable frequency pulses, selecting appropriate winding wire materials and insulation systems is crucial.
For compressor motors, refrigerant resistance is the primary consideration; for outdoor fan motors, high temperature resistance and moisture resistance are key; for indoor fan motors, cost-effectiveness and low noise are priorities.
Partnering with professional winding wire manufacturers to select suitable products based on specific refrigerant type, operating conditions, and certification requirements is an effective way to ensure the quality and performance of air conditioning motors.
