I. Introduction
Enamel coating, as a fundamental insulating material in electrical engineering, has been widely applied in the manufacturing of magnet wires, transformers, motors, and various electrical equipment for over a century. The question of why enamel coating is used instead of other insulation methods is central to understanding the design principles of electrical equipment. This comprehensive analysis explores the technical reasons, working principles, and practical advantages that make enamel coating the preferred choice for electrical insulation in countless applications. The use of enamel as an insulating material dates back to the early days of electrical industry development.
As electrical equipment became more compact and efficient, the demand for reliable, high-performance insulation grew significantly. Enamel coating emerged as the optimal solution due to its unique combination of electrical, mechanical, and thermal properties. Today, virtually all electric motors, transformers, generators, and countless other electrical devices rely on enamel-coated wires for their proper functioning. Understanding why enamel coating is used requires a comprehensive examination of multiple factors, including electrical insulation performance, thermal management, mechanical protection, space efficiency, and cost-effectiveness.
This article provides a detailed technical analysis of each aspect, offering insights into the science and engineering behind this ubiquitous technology.
II. Fundamental Principles of Enamel Coating
2.1 Definition and Composition
Enamel coating, also known as magnet wire enamel or insulating varnish, is a thin layer of polymer material applied to copper or aluminum conductors. The term “enamel” in this context refers to a classification of insulating materials defined by international standards such as IEC 60317 and NEMA MW 1000. Unlike decorative enamel used in pottery or jewelry, magnet wire enamel is specifically formulated to provide excellent electrical insulation while maintaining flexibility and thermal stability. The composition of enamel coatings varies depending on the specific performance requirements, but most modern formulations are based on one or more of the following polymer systems: polyester, polyesterimide, polyamideimide, and polyimide.
Each of these materials offers distinct advantages in terms of thermal class, chemical resistance, flexibility, and electrical properties. Polyester enamel provides good electrical insulation and moderate thermal resistance, typically rated for Class 130°C (130°C) or Class 155°C (155°C) applications. Polyesterimide enamel combines the benefits of polyester with improved thermal performance, achieving Class 155°C or Class 180°C ratings. Polyamideimide enamel offers exceptional thermal stability and chemical resistance, suitable for Class 200°C applications.
Polyimide enamel represents the highest thermal class, capable of operating at temperatures exceeding 220°C while maintaining excellent electrical and mechanical properties. The application process involves multiple coats of enamel applied to the conductor through a series of precision coating and baking cycles. Each coat adds a thin layer of insulation, and the number of coats determines the final insulation thickness and classification. According to NEMA standards, insulation levels are designated as single build, heavy build, triple build, and quadruple build, representing progressively thicker insulation layers.
2.2 How Enamel Coating Works
The primary function of enamel coating is to prevent electrical current from flowing between adjacent turns of wire in a coil or winding. When a voltage is applied to a coil of wire, the enamel insulation ensures that current flows along the conductor rather than short-circuiting to adjacent turns. This principle forms the basis of all electromagnetic device operation, including motors, transformers, and inductors. The electrical insulation mechanism relies on the high dielectric strength of the enamel material.
Dielectric strength, measured in kilovolts per millimeter (kV/mm), represents the maximum electric field that the material can withstand without breaking down. Quality enamel coatings typically exhibit dielectric strengths ranging from 100 kV/mm to 200 kV/mm or higher, depending on the specific formulation and application thickness. When properly applied, enamel coating creates a continuous, pinhole-free insulation layer that completely encapsulates the conductor. This continuous insulation is critical because any defects or voids in the coating can lead to premature failure through partial discharges or direct short circuits.
Modern manufacturing processes incorporate rigorous quality control measures, including high-voltage testing of finished wire, to ensure insulation integrity.
III. Key Reasons for Using Enamel Coating
3.1 Superior Electrical Insulation Performance
The most fundamental reason why enamel coating is used is its exceptional electrical insulation performance. Enamel provides a reliable barrier against current leakage between conductors, enabling the efficient operation of electromagnetic devices. The dielectric properties of enamel remain stable over a wide range of temperatures and frequencies, making it suitable for diverse applications from power frequency (50/60 Hz) to high-frequency power electronics. Enamel-coated wire exhibits excellent dielectric strength, allowing thin insulation layers to withstand high voltages.
A typical enamel coating of 0.05mm to 0.15mm thickness can withstand voltages ranging from 1 kV to 5 kV or more, depending on the specific material grade and test conditions. This impressive performance-to-thickness ratio enables the design of compact, high-power-density electrical equipment. The insulation resistance of enamel coating is extremely high, typically exceeding 10^14 ohm-centimeters. This high insulation resistance ensures minimal leakage current even under high voltage stress, contributing to the energy efficiency and reliable operation of electrical equipment.
The stable insulation resistance over the equipment’s operational lifetime is crucial for maintaining consistent performance. Another important electrical property is the low dielectric loss factor (tan δ) of quality enamel materials. Low dielectric losses mean that minimal energy is dissipated as heat when the insulation is subjected to alternating voltages. This characteristic is particularly important for high-frequency applications such as inductors in power electronics, where losses directly impact efficiency and thermal management.
Partial discharge resistance is another critical electrical property. Partial discharges are small electrical discharges that occur within voids or imperfections in insulation when exposed to high voltage stress. These discharges, if left unchecked, gradually degrade the insulation and eventually cause failure. Advanced enamel formulations offer excellent resistance to partial discharges, extending equipment lifespan and reliability.
3.2 Excellent Thermal Performance
Thermal performance is a key reason why enamel coating is used in demanding applications. Electrical equipment generates heat during operation due to copper losses (I²R heating) and core losses. The insulation system must be capable of withstanding these temperatures while maintaining its electrical and mechanical properties. Enamel coatings are available in multiple thermal classes to meet diverse application requirements.
The thermal classification of enamel-coated wire follows international standards. Class 130°C (130°C) insulation is suitable for applications with moderate temperature rise. Class 155°C (155°C) represents the most widely used thermal class, offering a good balance of cost and performance for general-purpose motors and transformers. Class 180°C (180°C) and Class 200°C (200°C) insulations are selected for high-temperature environments or applications with limited cooling.
The thermal aging characteristics of enamel are well-understood and predictable. Over extended periods at elevated temperatures, insulation properties gradually degrade through oxidation, thermal decomposition, and other chemical processes. Standardized thermal aging tests allow manufacturers to predict insulation lifetime under specified temperature conditions. This predictability enables engineers to design equipment with appropriate safety margins and required service life.
Thermal conductivity is another important property. While enamel is not a particularly good thermal conductor, its thin application minimizes thermal resistance between the conductor and the surrounding environment. In properly designed equipment, heat generated in the conductor can be effectively transferred to the cooling medium (air, oil, or water) without excessive temperature rise in the insulation.
3.3 Mechanical Protection and Durability
Mechanical protection represents another significant reason why enamel coating is used in wire insulation. The enamel layer shields the underlying conductor from physical damage during handling, winding, and equipment operation. This protection is essential for maintaining insulation integrity throughout the equipment’s service life. During the winding process, magnet wire is subjected to significant mechanical stresses.
The wire must flex around corners, maintain tension, and slide against other wires and the winding form. Enamel coating provides the necessary hardness and abrasion resistance to withstand these stresses without damage. Quality enameling produces a smooth, uniform surface that reduces friction and wear during winding. The flexibility of enamel coating allows the wire to be bent and formed without cracking or flaking of the insulation.
This flexibility is achieved through careful formulation and processing, ensuring that the enamel adheres well to the conductor surface while maintaining sufficient elongation capability. Round and rectangular magnet wires require different flexibility characteristics, and manufacturers produce specialized products to meet these varying requirements. Vibration resistance is critical for equipment such as traction motors, compressors, and other machinery that experiences continuous vibration during operation. Enamel coating must maintain its integrity despite millions of stress cycles over the equipment’s lifetime.
Advanced formulations offer improved fatigue resistance and adhesion to withstand severe vibration environments.
3.4 Space Efficiency and Compact Design
The high insulation performance-to-volume ratio of enamel coating enables the design of compact, lightweight electrical equipment. This space efficiency is a crucial reason why enamel coating is used in applications where size and weight are critical constraints, such as aerospace, electric vehicles, and portable devices. Compared to other insulation methods such as tape wrapping, fiberglass sleeving, or paper insulation, enamel coating provides equivalent or superior electrical insulation at a fraction of the thickness. A typical enamel insulation thickness ranges from 0.02mm to 0.15mm, while equivalent insulation by other methods might require several millimeters or more.
This difference directly impacts the overall size and weight of the finished equipment. In transformer design, the use of enamel-coated wire (magnet wire) enables high fill factors, meaning a larger percentage of the winding window is occupied by conductor rather than insulation. High fill factors result in more efficient use of core material, reduced copper losses, and smaller transformer size. Modern transformer designs routinely achieve fill factors exceeding 40% to 50% through the use of precision rectangular magnet wire and automated winding techniques.
For electric motors, enamel insulation allows tight winding tolerances and high slot fill factors. Higher slot fill means more copper in the motor, which translates to higher power capacity or smaller motor size for a given power rating. The continuous development of better enamel formulations, finer wire sizes, and improved winding techniques has enabled motor designs with progressively higher power densities.
3.5 Chemical and Environmental Resistance
Chemical resistance is an important consideration that explains why enamel coating is used in various environmental conditions. Enamel provides a barrier against moisture, oils, solvents, and other contaminants that could compromise insulation performance. Different enamel types offer varying degrees of chemical resistance to suit specific application environments. Moisture resistance is particularly important for equipment operating in humid environments or outdoor applications.
While no enamel is completely impervious to moisture penetration, certain formulations offer significantly improved moisture resistance. Polyamideimide and polyimide enamels provide excellent moisture barrier properties, making them suitable for demanding applications such as submersible motors and outdoor transformers. Oil resistance is essential for transformers and motors that may be exposed to transformer oils, lubricating oils, or other petroleum-based fluids. Some enamel formulations are specifically designed to withstand prolonged exposure to these fluids without degradation.
In transformer applications, the compatibility between enamel and transformer oil must be carefully considered to ensure long-term reliability. Chemical solvent resistance varies significantly among different enamel types. Polyester enamels offer moderate solvent resistance, while polyamideimide and polyimide enamels provide excellent resistance to most common solvents. For applications involving exposure to aggressive chemicals, specialized enamel formulations or additional protective measures may be required.
3.6 Cost-Effectiveness and Manufacturing Efficiency
Economic considerations are a practical reason why enamel coating is used almost universally in magnet wire applications. Enamel-coated wire offers an excellent balance of performance and cost, making it the most economical choice for high-volume electrical equipment manufacturing. The production process for enamel-coated wire is highly efficient and well-suited to large-scale manufacturing. Modern enamel coating lines operate at speeds of hundreds of meters per minute, applying multiple coats of enamel with precision thickness control.
The continuous nature of the manufacturing process, combined with high production rates, keeps per-meter costs low for standard enamel-coated wire products. The winding process for enamel-coated wire is readily automated, contributing to overall manufacturing efficiency. High-speed winding machines can produce motor and transformer windings with consistent quality and precise dimensions. The smooth surface and consistent properties of enamel-coated wire enable reliable automated handling and processing.
The cost of raw materials for enamel coating is relatively modest compared to the value added through electrical insulation. While specialized high-temperature enamels command premium prices, the most commonly used grades (Class 130°C and Class 155°C) are produced cost-effectively in enormous quantities worldwide. This widespread production availability keeps prices stable and supply reliable.
IV. Types of Enamel Coating and Their Applications
4.1 Polyester Enamel
Polyester enamel is one of the most widely used types of magnet wire enamel, valued for its excellent balance of properties and cost-effectiveness. The thermal rating of standard polyester enamel is typically Class 130°C (130°C), though modified grades can achieve Class 155°C ratings. Polyester enamel offers good electrical insulation, adequate flexibility, and reasonable chemical resistance for many standard applications. The advantages of polyester enamel include excellent film flexibility, good adhesion to conductors, smooth surface finish, and cost competitiveness.
These characteristics make it suitable for a wide range of applications including fractional horsepower motors, transformers, solenoid coils, and general-purpose electrical equipment where operating temperatures do not exceed 130°C. Modified polyester enamels, sometimes called polyester-polyamideimide or PAI-backed polyesters, achieve higher thermal ratings through chemical modification or primer coats. These modified versions expand the application range of polyester-based enamels to include motors and transformers with moderate temperature requirements. The improved thermal capability comes with some increase in cost and potential reduction in flexibility compared to standard polyester.
Applications for polyester enamel-covered wire include household appliance motors, small pumps, fans, power tools, and general industrial equipment. The majority of motors produced globally fall into this category and rely on polyester enamel for reliable, economical insulation. The proven performance and extensive manufacturing experience with polyester enamel ensure consistent quality and ready availability.
4.2 Polyesterimide Enamel
Polyesterimide enamel represents an important intermediate class of magnet wire insulation, offering improved thermal performance compared to standard polyester while maintaining good cost efficiency. The typical thermal rating for polyesterimide is Class 155°C (155°C) or Class 180°C (180°C) depending on the specific formulation and manufacturer. This enhanced thermal capability extends the application range compared to standard polyester. The “imide” modification refers to the incorporation of imide groups into the polymer chain, which improves thermal stability and oxidation resistance.
The resulting material maintains good film flexibility and adhesion characteristics while achieving higher continuous operating temperatures. This combination of properties makes polyesterimide a popular choice for many motor and transformer applications. Polyesterimide enamel is widely used in中等-sized motors, automotive motors, hermetic motors, and other applications requiring Class 155°C or higher thermal capability. The automotive industry in particular relies heavily on polyesterimide enamels for motors in pumps, fans, actuators, and other vehicle systems.
These applications demand reliable performance under demanding thermal and vibration conditions. Manufacturing advantages of polyesterimide include good winding performance, resistance to breaking during tight bends, and compatibility with standard processing equipment. The enamel flows well during baking to produce a smooth, pinhole-free insulation layer. Overall processing characteristics are similar to standard polyester, allowing manufacturers to switch between grades without significant process changes.
4.3 Polyamideimide Enamel
Polyamideimide (PAI) enamel represents a high-performance insulation material with exceptional thermal capability and chemical resistance. The typical thermal rating for polyamideimide is Class 200°C (200°C), making it suitable for the most demanding high-temperature applications. PAI enamel also offers excellent resistance to refrigerants, making it the preferred choice for hermetic compressor motors. The unique properties of polyamideimide result from its aromatic polyamideimide chemistry, which provides exceptional thermal stability and mechanical strength.
The material maintains its properties over a wider temperature range than polyester or polyesterimide, and exhibits excellent resistance to thermal aging and oxidation. This exceptional thermal capability comes at a premium cost compared to lower-temperature grades. Applications for polyamideimide enamel include hermetic refrigeration compressors, high-temperature motors, aerospace equipment, and other demanding applications where long-term reliability at elevated temperatures is critical. The hermetic compressor market represents a particularly important application, where the enamel must withstand continuous exposure to refrigerant gases and oils at temperatures exceeding 150°C.
Chemical resistance is another advantage of polyamideimide. The material resists attack by most solvents, oils, and refrigerants, maintaining insulation integrity in challenging environments. This chemical resistance complements its thermal capability, enabling use in applications involving exposure to aggressive fluids or atmospheres that would degrade lesser insulation materials.
4.4 Polyimide Enamel
Polyimide enamel represents the highest performance class of organic magnet wire insulation, with thermal capabilities exceeding 220°C and in some cases reaching 250°C or higher. The outstanding thermal performance of polyimide comes from its aromatic heterocyclic chemistry, which provides exceptional thermal stability and resistance to thermal degradation. The advantages of polyimide enamel include the highest continuous operating temperature among common magnet wire insulations, excellent thermal aging resistance, good electrical properties at high temperatures, and broad chemical compatibility. These characteristics make polyimide the material of choice for the most demanding applications where failure would have serious consequences.
Applications for polyimide enamel include aerospace motors and generators, deep-well oil exploration equipment, nuclear power plant motors, military systems, and other high-reliability applications. The additional cost of polyimide insulation is justified in these applications by the need for maximum reliability and the absence of alternatives that could provide equivalent performance. One limitation of polyimide enamel is its relatively poor resistance to steam and moisture at high temperatures. In applications involving exposure to hot, humid environments, alternative materials such as polyamideimide may provide better long-term reliability.
Careful consideration of the specific application environment is necessary when selecting polyimide insulation.
V. Manufacturing Process of Enamel-Coated Wire
5.1 Conductor Preparation
The manufacturing of enamel-coated wire begins with careful preparation of the bare conductor. Copper or aluminum wire is drawn to the desired size through a series of dies, with intermediate annealing steps to restore ductility and achieve the required electrical conductivity. The conductor surface must be clean and free from contaminants that could interfere with enamel adhesion. Surface preparation for copper wire typically involves cleaning to remove drawing lubricants, oxide films, and any other surface contaminants.
Chemical cleaning or mechanical buffing may be employed to achieve the required surface finish. The conductor surface roughness must be controlled within close tolerances to ensure good enamel adhesion while avoiding excessive roughness that could cause wire feeding problems during winding. Annealing is a critical step in conductor preparation, particularly for fine wire sizes where the drawing process work-hardens the material. Proper annealing produces a uniform grain structure with consistent mechanical properties along the wire length.
The annealed conductor must be soft enough for winding flexibility while maintaining sufficient strength to resist sag and deformation during processing and operation. Quality control during conductor preparation includes dimensional verification, surface inspection, and electrical conductivity testing. Any defects in the conductor, such as diameter variations, surface imperfections, or embedded contaminants, can cause problems during enameling or result in insulation weaknesses in the finished product. Rigorous incoming inspection and process control help ensure consistent conductor quality.
5.2 Enamel Application Process
The enamel application process involves multiple coating and baking cycles to build up the insulation layer to the specified thickness. The wire passes through an enamel reservoir, where a precisely controlled amount of enamel is picked up by the wire surface. The coated wire then enters a long baking tower, where solvent evaporates and the enamel polymer cures to form a hard, adherent insulation layer. The coating head (die or applicator) is designed to apply a consistent enamel thickness across the wire width or circumference.
For round wire, a round die controls the enamel thickness around the circumference. For rectangular or shaped wire, specialized applicators accommodate the non-circular geometry while ensuring uniform coverage of all surfaces and corners. The baking process is critical to achieving proper enamel cure and adhesion. Temperature and residence time in the baking tower must be carefully controlled.
Insufficient heat results in soft, under-cured enamel with poor adhesion and solvent retention. Excessive heat can cause embrittlement, discoloration, or degradation of the enamel. Modern enameling lines employ precise temperature profiling and feedback controls to ensure consistent cure throughout production. Multiple coats are required to achieve the final insulation thickness.
Each coat adds a thin enamel layer, typically 0.01mm to 0.03mm per coat. The number of coats is specified according to the desired insulation class and build level. Standard productions might apply 2 to 6 coats, while heavy-build insulations may require 10 or more coats. Each coat must be properly cured before the next is applied to avoid trapping solvents or creating laminated defects.
5.3 Quality Testing and Verification
Quality testing of enamel-coated wire encompasses electrical, mechanical, and thermal property verification. These tests ensure that the finished wire meets all specified requirements and will perform reliably in end-use applications. Testing may be performed on samples from each production lot as well as on continuous production samples. Electrical testing includes dielectric breakdown voltage, insulation resistance, and voltage stress tests.
The dielectric breakdown test applies an increasing AC or DC voltage until insulation failure occurs, verifying that the insulation can withstand required voltage levels. Insulation resistance measurement confirms that leakage current remains within acceptable limits. These tests are typically performed on 100% of production as a pass/fail screening. Mechanical testing verifies that the enamel adheres properly to the conductor and can withstand handling and winding stresses.
The scrape test evaluates resistance to mechanical damage from scraping or abrasion. The elongation test verifies that the enamel remains intact when the wire is stretched. The flexibility test confirms that the enamel can withstand wrapping around specified mandrel sizes without cracking. Thermal testing may include thermal aging studies, thermal shock tests, and cut-through resistance at elevated temperatures.
These tests verify that the enamel maintains its properties under thermal stress and will provide reliable service at the rated temperature. For specialized applications, additional tests may evaluate compatibility with specific environments or fluids.
VI. Applications of Enamel-Coated Wire

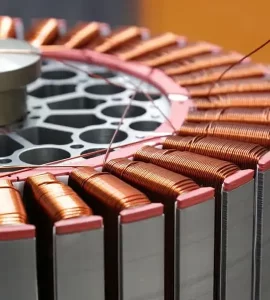

6.1 Electric Motors
Electric motors represent the largest single application for enamel-coated wire. Virtually all motors, from tiny stepper motors in disk drives to massive traction motors in locomotives, rely on enamel insulation for their windings. The motor type, power rating, and operating environment determine the specific enamel grade selected for each application. In small motors for consumer appliances, cost-effective polyester or modified polyester enamels typically provide adequate performance.
These motors operate at relatively low temperatures and may experience only intermittent duty cycles. The high production volumes of such motors drive demand for economical insulation materials with proven reliability. In industrial motors and larger appliances, polyesterimide or polyamideimide enamels provide the thermal capability required for continuous high-load operation. The improved thermal performance of these grades allows smaller motor designs for a given power rating or longer motor life at design temperatures.
Efficiency regulations have also driven adoption of higher thermal class enamels to reduce losses and enable more compact designs. In traction motors for electric vehicles, the demands are particularly severe: high power density, excellent thermal performance, vibration resistance, and long service life. Polyamideimide and specialized high-performance enamels meet these requirements, enabling the development of reliable electric drive systems. The continued growth of electric vehicles represents a significant driver of demand for high-quality enamel-coated wire.
6.2 Transformers
Transformers represent another major application for enamel-coated wire, used in both power and signal isolation applications. The transformer winding must withstand high voltages while efficiently conducting current at specified temperatures throughout its operational life. Enamel-coated wire provides the ideal combination of electrical insulation and thermal performance for transformer windings. Power transformers typically employ paper or cellulose insulation in conjunction with enamel-coated wire for the high-voltage windings.
The paper provides bulk insulation and oil channels, while the enamel provides turn-to-turn insulation within each coil. This hybrid insulation system has proven highly reliable in countless transformer installations worldwide. Distribution transformers and smaller power transformers may use all-enameled windings, particularly for dry-type (air-cooled) designs. The enamel provides sufficient insulation for the voltage levels involved, while enabling simpler, more compact construction compared to oil-filled designs.
Dry-type transformers using enamel insulation are widely used in buildings, industrial facilities, and renewable energy systems. Audio and signal transformers represent specialized applications where enamel-coated wire provides the necessary isolation between windings while maintaining good magnetic coupling. These transformers often use special grades of wire with particularly consistent electrical properties and low parasitic capacitance. The high frequencies involved in audio applications place special demands on insulation performance that quality enamels can satisfy.
6.3 Inductors and Coils
Inductor and coil applications encompass a wide range of devices including power inductors, RF inductors, solenoid coils, and magnetic components in electronic circuits. These applications often demand specific electrical characteristics that influence wire selection and sometimes require specialized enamel grades. Power inductors in switching power supplies operate at high frequencies where skin effect and proximity effect losses become significant. Specialized litz wire constructions, which use multiple thin strands of individually enameled wire, reduce these losses at high frequencies.
Each strand is insulated with enamel to ensure current distribution across all strands rather than concentrating on the outer surface. RF inductors for radio frequency applications often use silver-plated copper wire with enamel insulation. The silver plating improves conductivity at the surface where high-frequency current flows, while the enamel provides electrical isolation between turns. Special low-dielectric-loss enamels are available for the most demanding RF applications.
Solenoid coils for electromechanical devices such as valves, relays, and actuators rely on enamel insulation for reliable operation over millions of actuation cycles. The combination of thermal resistance (from coil heating during sustained energization) and mechanical robustness (from repeated magnetic forces) makes polyamideimide or similar high-performance enamels the preferred choice for demanding solenoid applications.
6.4 Other Applications
Beyond motors, transformers, and inductors, enamel-coated wire finds numerous other applications across electrical and electronic equipment. The versatility of enamel insulation and the availability of specialized grades enable its use in demanding specialized applications. Generators and alternators employ enamel-coated wire in their field and armature windings, facing requirements similar to motors but often with larger wire sizes and different construction techniques. Large generators in power plants and wind turbines represent critical infrastructure where the reliability of enamel insulation directly impacts electrical supply security.
Magnetic coils in medical imaging equipment such as MRI systems require exceptionally high quality enamel insulation to ensure patient safety and image quality. The combination of high field strengths, gradient switching, and continuous operation demands premium insulation grades and meticulous quality control throughout manufacturing. Coils in scientific instruments, particle accelerators, and research equipment often operate under极端 conditions including cryogenic temperatures, high vacuum, or intense radiation. Specialized enamel formulations or alternative insulation systems may be required for these specialized applications, pushing the boundaries of insulation technology.
VII. Advantages Over Alternative Insulation Methods
7.1 Comparison with Tape-Wrapped Insulation
Tape-wrapped insulation, using materials such as fiberglass tape or polyester tape, was common in older electrical equipment designs but has been largely superseded by enamel coating in most applications. The advantages of enamel over tape wrapping are numerous and significant. Space efficiency is perhaps the most important advantage. Tape wrapping typically requires multiple layers of tape to achieve equivalent insulation thickness, consuming much more space than a thin enamel coating.
In tight-fitting motor slots or transformer windings, this space difference directly impacts equipment size and performance. Enamel allows higher fill factors and more compact designs. Manufacturing efficiency also strongly favors enamel. Tape wrapping is a labor-intensive, discontinuous process requiring skilled operators to apply tape with consistent tension and overlap.
Enamel coating, by contrast, is a continuous, highly automated process producing wire with perfectly uniform insulation at high speeds. The difference in manufacturing cost between tape-wrapped and enamel-insulated equipment is substantial. Insulation consistency is another advantage. Human operators applying tape can introduce variations in tension, overlap, and coverage that affect insulation quality.
Enamel application by automated equipment produces highly consistent insulation thickness and properties throughout the production run and between batches. This consistency translates to more predictable equipment performance and quality.
7.2 Comparison with Paper and Cellulose Insulation
Paper and cellulose insulation systems remain important in large power transformers, where they serve as major insulation between windings and in bushings. However, for turn-to-turn insulation within coils, enamel coating offers significant advantages. Understanding when each insulation type is appropriate helps explain the specific advantages of enamel. Paper insulation excels in applications where bulk insulation, oil channels, and high dielectric strength in thick sections are required.
In power transformers, paper-wrapped conductors provide excellent turn-to-turn and layer insulation, with the overall oil-paper system achieving outstanding reliability in millions of transformer-years of operation. The combination of cellulose and transformer oil has proven reliability over more than a century of use. For turn-to-turn insulation within transformer coils, however, enamel coating provides superior performance in several respects. The continuous, pinhole-free enamel layer provides better voltage withstand per unit thickness than paper.
The excellent adhesion of enamel prevents void formation that can lead to partial discharge. The thermal conductivity of enamel is better than paper, improving heat transfer from the conductor. In dry-type transformers, where no liquid coolant is present, enamel becomes the primary insulation for turn-to-turn protection. The thermal class of the enamel directly determines the transformer’s permissible temperature rise, making high-performance enamels essential for achieving high power ratings in air-cooled designs.
7.3 Comparison with Extruded Plastics
Extruded plastic insulation, using materials such as PVC, polyethylene, or cross-linked polyethylene, is common in hookup wire and power cables but finds limited use in magnet wire applications. The reasons for preferring enamel in magnet wire applications illustrate specific advantages of enamel coating. Flexibility is the primary limitation of extruded insulation for magnet wire applications. Extruded plastics, even when formulated for flexibility, cannot match the elongation and fatigue resistance of properly formulated enamel coatings.
Magnet wire must withstand tight bending around coil forms and sharp corners without cracking or delaminating. Thin insulation capability favors enamel. While extrusion can produce thin insulation, achieving the very thin layers (0.02mm to 0.05mm) typical of magnet wire insulation is difficult and costly with extrusion processes. The multiple-coat enameling process naturally produces the extremely thin, uniform layers required for high-performance magnet wire.
Temperature capability of most extruded plastics is limited compared to high-temperature enamel grades. PVC insulation is typically limited to 80°C to 90°C, far below the operating temperatures of many motors and transformers. Even cross-linked polyethylene, rated to 90°C or 105°C, cannot match the thermal capability of polyesterimide (155°C) or polyamideimide (200°C) enamels.
VIII. Conclusion
The question of why enamel coating is used can be answered comprehensively by examining the multiple technical and economic advantages it provides. Enamel coating remains the dominant insulation technology for magnet wire because it delivers an exceptional combination of electrical insulation performance, thermal capability, mechanical protection, space efficiency, chemical resistance, and cost-effectiveness that no alternative insulation method can match across all these dimensions simultaneously. The fundamental principle of electrical insulation—preventing current flow between adjacent conductors—requires a material with high dielectric strength, excellent adhesion, and complete coverage of the conductor surface. Enamel coating achieves all these requirements through a precisely controlled manufacturing process that produces consistent, pinhole-free insulation layers measured in hundredths of a millimeter.
The thermal performance range available in enamel-coated wire, from Class 130°C to above Class 220°C, covers the requirements of essentially all common electrical equipment applications. This range is achieved through different polymer chemistries, each optimized for specific property combinations. The continued development of new enamel formulations promises further improvements in thermal capability, environmental resistance, and other specialized properties. The manufacturing efficiency of enamel coating production enables high-volume, cost-effective supply of magnet wire to the electrical equipment industry.
Combined with the suitability of enamel-coated wire for automated winding processes, this efficiency translates into economical manufacturing of motors, transformers, and other electromagnetic devices at billions of units per year globally. As electrical equipment continues to evolve toward higher power densities, greater efficiency, and more demanding operating conditions, the insulation technology must advance in parallel. Enamel coating has demonstrated remarkable adaptability throughout its long history, evolving from simple modified natural materials to sophisticated polymer systems that push the boundaries of thermal and electrical performance. Understanding why enamel coating is used helps engineers make informed decisions about insulation selection, equipment design, and quality assurance.
The proven reliability of quality enamel insulation, backed by extensive testing, field experience, and continuous improvement in materials and processes, provides the foundation for the dependable operation of countless electrical systems upon which modern society depends. For future developments, research continues into new enamel formulations with enhanced properties, improved manufacturing processes for greater efficiency and consistency, and specialized applications pushing the boundaries of temperature, frequency, and environmental capability. Enamel coating will remain central to electrical insulation technology, adapting to meet the evolving demands of electrical equipment design and manufacturing.
—
*Keywords: Enamel Coating, Magnet Wire, Electrical Insulation, Enameled Wire, Motor, Transformer, Insulated Wire, Wire Coating, Electrical Insulation Materials, Enamel Technology*
