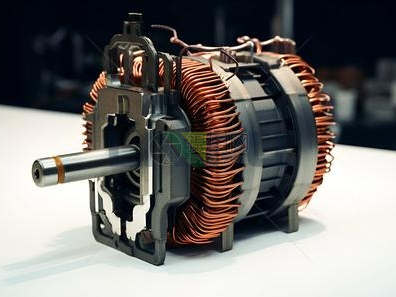

Submersible pump motors are special motors widely used in agricultural irrigation, municipal water supply, mine drainage, petrochemicals, and other fields.
Unlike ordinary motors, submersible pump motors need to operate completely submerged in water, enduring long-term tests of water pressure, flow, and humid environments.
These special working conditions place stringent requirements on various materials inside the motor, especially the enameled copper wire, which is the core material.
The insulation system of submersible pump motors differs fundamentally from that of ordinary motors.
The motor&39;s interior is filled with waterproof oil or employs a special sealing structure.
The enameled copper wire not only needs to possess excellent electrical insulation performance but must also operate stably for extended periods in this special environment.
Improperly selected enameled copper wire can lead to insulation aging, coil breakdown, and other faults, severely affecting the service life and operational reliability of the submersible pump.
Operating Characteristics of Submersible Pump Motors Special Working Environment Submersible pump motors operate submerged in water for extended periods, which is their most significant characteristic: The motor casing must withstand external water pressure, requiring extremely high sealing performance.
Water temperature can vary from low to high, especially in industrial applications.
Water quality is complex, potentially containing silt, acids, alkalis, or corrosive minerals.
Heat Dissipation Conditions Submersible pump motors dissipate heat differently than ordinary motors: They primarily rely on the surrounding water for cooling.
Motor design must consider heat dissipation efficiency in water.
Insufficient heat dissipation may occur during prolonged low-load operation.
Maintenance Difficulties Submersible pump motors are installed underwater, making maintenance and repair extremely inconvenient: In case of failure, the entire pump body needs to be lifted out of the water.
Maintenance cycles are long and costly, requiring extremely high reliability.
Service life and failure rate should be fully considered when selecting a submersible pump.
Requirements for Enameled Copper Wire in Submersible Pump Motors Excellent Water Resistance Water resistance is the primary requirement for enameled copper wire in submersible pump motors: The enamel coating must be able to withstand long-term immersion in water without deterioration.
The insulating varnish must not react chemically with water in direct contact.
Moisture penetration will cause a sharp decline in insulation performance, and complete isolation is necessary.
Excellent Oil Resistance Submersible pump motors are typically filled with waterproof oil: Mineral oil or synthetic oil is a common filling medium inside motors.
The insulating varnish of the enameled copper wire must be compatible with the oil and not swell or soften.
Additives in the oil may affect the insulation material.
Excellent Heat Resistance Submersible pump motors may operate at temperatures exceeding those of conventional motors: Industrial applications such as hot water pumps and deep well pumps can reach operating temperatures above 100°C.
Higher thermal class enameled copper wire products are required.
Heat resistance directly affects insulation life and operational reliability.
Good Mechanical Properties Enameled copper wire needs to withstand various stresses during winding and operation: Good flexibility facilitates coil winding and reduces the risk of enamel coating damage.
Sufficient mechanical strength resists vibration and thermal expansion during operation.
Fatigue resistance ensures reliability during long-term operation.
Commonly Used Enameled Copper Wire Types for Submersible Pump Motors Polyimide Enameled Copper Wire Polyimide enameled copper wire is a common choice for submersible pump motors: Thermal class up to 180°C, meeting most application requirements.
Good compatibility with oil, suitable for oil-immersed structures.
High cost-performance ratio, a balanced choice.
Polyimide Enameled Copper Wire Polyimide enameled copper wire is a high-end product: Thermal class up to 220°C, suitable for high-temperature conditions.
Excellent chemical stability, outstanding water and oil resistance.
Suitable for harsh applications such as deep well hot water pumps.
Direct Solderable Enameled Copper Wire Direct solderable enameled copper wire is easy to manufacture and maintain: the enamel coating can be quickly removed by heating or chemical methods.
It facilitates soldering leads and shortens the manufacturing cycle.
However, it should be noted that the water resistance of the direct solderable enamel coating is relatively weak.
Selection Technical Guide Selection Based on Operating Water Depth Operating water depth directly affects the water pressure the motor can withstand: For shallow water applications, standard water-resistant enameled copper wire can be used.
For deep water applications, higher-grade products are required.
Beyond a certain water depth, special structural designs are needed.
Selection Based on Water Temperature Water temperature is a key factor affecting the selection of insulation class: For room temperature clean water applications, standard polyimide products are sufficient.
For hot water applications, polyimide products are required.
For geothermal or industrial wastewater applications, special attention needs to be paid to temperature resistance.
Selection Based on Water Quality Water quality conditions affect the durability of enameled copper wire: For clean fresh water applications, standard products are sufficient.
Water bodies containing silt require better mechanical protection.
For acidic or alkaline water or seawater, corrosion-resistant products are required.
Selection of Submersible Pump Model Based on Motor Structure: The motor structure affects the selection of enameled copper wire: Oil-immersed submersible pumps require oil-resistant products.
Oil-filled structures have relatively lower requirements for enameled copper wire.
Dry structures require higher sealing performance.
Usage Precautions Winding Process: The winding process directly affects the performance of the enameled copper wire: The winding tension should be appropriate to avoid damage to the enameled coating. The winding arrangement should be neat and tight to ensure good thermal conductivity. Avoid direct friction between the enameled coating and metal parts to prevent damage. Enameling Treatment: Enameling treatment enhances insulation reliability: Vacuum enamel impregnation ensures that the insulating varnish fully penetrates the winding. After impregnation, baking and curing form a complete insulation structure. Good enamel impregnation significantly improves water resistance. Sealing Inspection: The sealing performance of the submersible pump motor is crucial: A rigorous sealing test must be performed after manufacturing. Check for moisture infiltration inside the motor. Ensure there is no risk of leakage at any sealing point.
Common Problems and Solutions Insulation Aging Submersible pump motors may experience insulation aging after a period of operation: Regularly test insulation resistance and monitor insulation status. Avoid frequent start-stop cycles to reduce thermal shock damage to the insulation. Repair or replace the insulation promptly if insulation degradation is detected. Partial Discharge Partial discharge accelerates insulation aging: Partial discharge may occur during high-frequency operation. Select enameled copper wire with better resistance to partial discharge. Optimize motor design to reduce electric field stress concentration. Seal Failure Seal failure is one of the most common failure modes: It may be caused by aging of the seals, improper installation, or excessive water pressure. Stop the machine immediately for repair if seal failure occurs. Regularly check the condition of the sealing parts.
The selection of enameled copper wire for submersible pump motors is a highly technical task, requiring comprehensive consideration of factors such as operating water depth, water temperature, water quality, and motor structure.
Polyimide and polyimide enameled copper wire are commonly used choices for submersible pump motors; the former offers better cost-effectiveness, while the latter has superior heat resistance.
When selecting a submersible pump motor, the appropriate product should be chosen based on the specific application conditions, while strictly controlling the winding process and sealing quality.
Submersible pump motors are installed underwater, making maintenance difficult and requiring extremely high reliability; therefore, sufficient safety margins should be considered during selection.
With advancements in materials technology, more water-resistant, heat-resistant, and reliable enameled copper wire products are constantly emerging, providing strong support for improving the performance of submersible pump motors.
