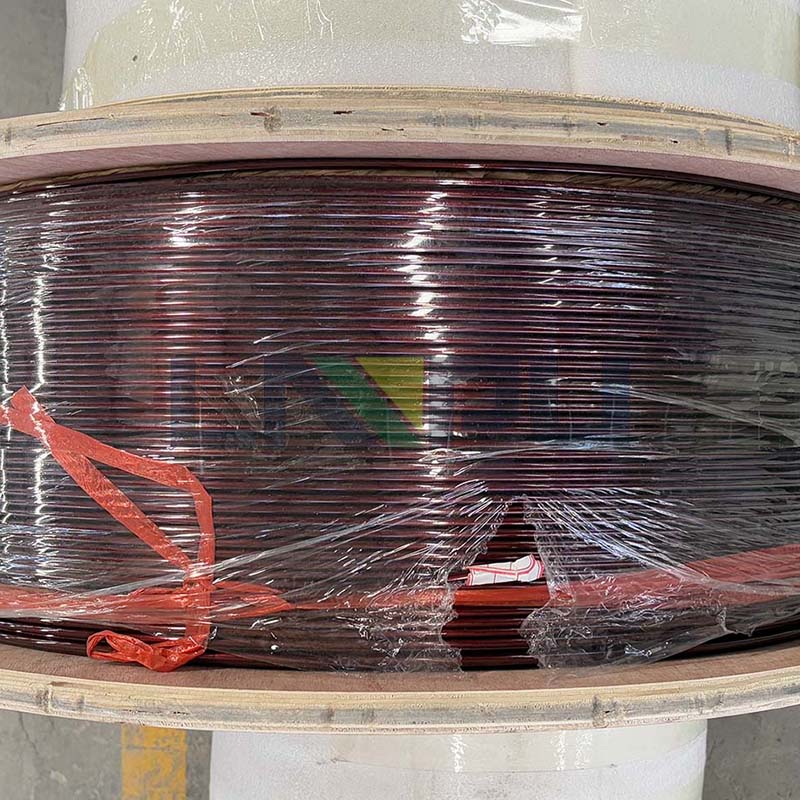

Resistance of Enameled Aluminum Wire I. Basic Concept of Resistance
1.1 Resistance Formula
The basic formula for conductor resistance is: R = ρ × L / A
Where: R is resistance (Ω), ρ is resistivity (Ω·mm²/m or Ω·m), L is conductor length (m), A is cross-sectional area (mm²).
For enameled wire engineering, the most commonly used form is R = ρL/A (using ρ unit Ω·mm²/m, L unit m, A unit mm²).

1.2 Concept of Resistivity
Resistivity (ρ) is a property of the material itself — characterizing the resistance per unit length and unit cross-section. The lower the resistivity, the better the conductivity of the material.
The International Annealed Copper Standard (IACS) stipulates that: the resistivity of annealed pure copper at 20°C is 0.017241 Ω·mm²/m, and the conductivity is 100 percent IACS.
1.3 Enameled
Aluminum Wire vs Enameled Copper Wire
| Conductor Material | Resistivity (Ω·mm²/m) | Conductivity (% IACS) | Density (g/cm³) |
|---|---|---|---|
| Copper (Cu, annealed) | 0.01724 | 101 | 8.96 |
| Aluminum (Al, 1350-O) | 0.02801 | 61 | 2.70 |
| Copper Clad Aluminum (CCA, 30% Cu) | 0.02150 | 79 | 3.55 |
| Copper Clad Aluminum (CCA, 15% Cu) | 0.02480 | 68 | 3.20 |
The resistivity difference between enameled aluminum wire and enameled copper wire is the core starting point of engineering design.
The resistivity of aluminum is 1.63 times that of copper — this is the most critical electrical parameter in aluminum-to-copper substitution design.
II. Temperature Effect on Resistance
2.1 Temperature Coefficient of
Resistance
Temperature Coefficient of Resistance (TCR) describes the rate at which resistance changes with temperature. The resistance of metallic conductors increases with temperature.
Aluminum TCR: 0.00429 per °C (20 to 100°C).
Copper TCR: 0.00393 per °C (20 to 100°C).
Aluminum TCR is 9 percent higher than copper — meaning the resistance of aluminum wire increases by a larger proportion under the same temperature rise.
2.2 Resistance Temperature Formula
The formula for calculating the resistance of a conductor at any temperature is: R(T) = R(20°C) × [1 + α × (T – 20)]
Where: α is the temperature coefficient of resistance (aluminum 0.00429, copper 0.00393).
2.3 Resistance Increase at Elevated Temperatures
The following table summarizes the resistance increase multiples of aluminum wire and copper wire at different temperatures (based on 20°C):
| Temperature (°C) | Aluminum Wire Resistance Multiple | Copper Wire Resistance Multiple | Difference |
|---|---|---|---|
| 20 | 1.000 | 1.000 | 0% |
| 60 | 1.172 | 1.157 | +1.3% |
| 100 | 1.343 | 1.314 | +2.2% |
| 155 | 1.580 | 1.530 | +3.3% |
| 180 | 1.700 | 1.629 | +4.4% |
| 200 | 1.772 | 1.692 | +4.7% |
At 200°C operating temperature, aluminum wire resistance is 4.7 percent higher than copper wire — this is the additional loss of Class N enamel aluminum wire in high temperature applications.
2.4 Engineering Significance
The effect of temperature on resistance is particularly critical in motor winding design — motor winding temperature rise is usually 60 to 100°C.
Typical case: aluminum enameled wire motor winding at 100°C operating temperature, resistance increases by 34.3 percent compared to 20°C. Under the same current, I²R loss also increases by 79 percent compared to 20°C.
Impact on design: aluminum enameled wire windings require more conservative current density design (usually 70 to 80 percent of copper).
III. Frequency Effect on Resistance
3.1 Skin Effect
When alternating current passes through a conductor, the current density is unevenly distributed on the cross-section — the current density on the conductor surface is greater than the center. This phenomenon is called skin effect.
The formula for skin depth δ is: δ = √(ρ / (π × f × μ))
Where: f is frequency (Hz), μ is magnetic permeability (H/m, both aluminum and copper are 4π × 10⁻⁷ H/m).
3.2 Skin Depth of
Aluminum
Skin depth of aluminum (20°C):
50 Hz: δ_Al = 11.7 mm.
60 Hz: δ_Al = 10.6 mm.
400 Hz: δ_Al = 4.1 mm.
1 kHz: δ_Al = 2.6 mm.
10 kHz: δ_Al = 0.83 mm.
100 kHz: δ_Al = 0.26 mm.
The skin depth of copper is about 1.28 times that of aluminum (because the resistivity ratio is 1.28:1).
3.3 Resistance Increase at High Frequency
When the conductor diameter is greater than 2 times the skin depth, the AC resistance is significantly greater than the DC resistance.
Typical application: at 50/60 Hz power frequency, skin effect is negligible for common wire diameters (0.5 to 5 mm). But at 1 to 10 kHz medium frequency (such as EV inverter, induction heating), the effective current carrying area of aluminum enameled wire will be significantly reduced, and the AC resistance will increase significantly.
Typical case: 2.0 mm diameter aluminum enameled wire at 10 kHz, due to skin effect, the effective current carrying area is about 60 percent of that at DC, and the AC resistance is about 1.67 times the DC resistance.
3.4 Litz Wire
To cope with high frequency applications, engineers use Litz Wire — composed of multiple fine enameled wires (diameter 0.05 to 0.20 mm) stranded together.
Advantages of Litz Wire: the diameter of each fine wire is much smaller than the skin depth, skin effect is very small, AC resistance is close to DC resistance.
Aluminum Litz Wire: increasingly used in EV drive motors, wind power converters, high frequency transformers.
IV. Cross-Section Selection
4.1 Equal
Resistance Design Principle
The core of aluminum-to-copper substitution design is to maintain the same resistance. Under the same current carrying capacity requirement, the cross-sectional area of aluminum conductor needs to be 1.63 times that of copper.
Calculation example: 1.0 mm diameter copper enameled wire (cross-sectional area 0.785 mm²) equivalent resistance aluminum enameled wire:
A_Al = A_Cu × 1.63 = 0.785 × 1.63 = 1.28 mm²
d_Al = √(4 × 1.28 / π) = 1.28 mm
The diameter increases from 1.0 mm to 1.28 mm — this is the most direct cost of aluminum-to-copper substitution design.
4.2 Equal Current Density
Design
If the same current density is maintained (i.e., equal current density design), the aluminum conductor will have higher resistance — but many engineering practices do not adopt this scheme.
Example: 1.0 mm diameter copper wire, current density 5 A/mm², current carrying 3.93 A.
Equal current density aluminum wire: 1.0 mm diameter, current carrying 3.93 A, but resistance increases by 63 percent — this scheme is acceptable in long-distance power transmission, but not acceptable in windings.
4.3 Equal Loss
Design
If equal loss (I²R) is maintained, aluminum wire needs a larger cross-sectional area — this is a stricter equivalent condition.
Equal loss means the same resistance → cross-sectional area ratio 1.63:1.
In fact, the engineering design of aluminum-to-copper substitution usually adopts the equal resistance scheme — this is a more direct and reliable method.
4.4 Equal Diameter
Design
In some scenarios with strict structural constraints (such as motor slot fill factor, transformer size), engineers may choose the equal diameter scheme.
Equal diameter scheme: aluminum wire and copper wire have the same diameter, but resistance increases by 63 percent and current carrying capacity decreases by 39 percent.
This scheme is usually unacceptable — only suitable for low-power, unimportant applications.
V. Length Calculation
5.1 Resistance Length Formula
For enameled wire with known diameter and material, the resistance per unit length can be calculated:
Resistance per unit length (Ω/m) = 4 × ρ / (π × d²)
Where: d is conductor diameter (mm).
5.2 Aluminum Enameled Wire
Resistance per Unit Length
| Diameter (mm) | Cross-Section Area (mm²) | Aluminum Unit Length Resistance (Ω/m) | Copper Unit Length Resistance (Ω/m) | Ratio |
|---|---|---|---|---|
| 0.30 | 0.071 | 0.397 | 0.244 | 1.63 |
| 0.50 | 0.196 | 0.143 | 0.0878 | 1.63 |
| 0.80 | 0.503 | 0.0557 | 0.0343 | 1.62 |
| 1.00 | 0.785 | 0.0357 | 0.0220 | 1.62 |
| 1.50 | 1.767 | 0.0159 | 0.00976 | 1.63 |
| 2.00 | 3.142 | 0.00892 | 0.00549 | 1.62 |
| 3.00 | 7.069 | 0.00396 | 0.00244 | 1.62 |
The aluminum wire resistance per unit length is always 1.63 times that of copper wire — this is the design reference for a constant ratio.
5.3 Aluminum-to-Copper Diameter Conversion Table
The aluminum-to-copper diameter conversion table commonly used in actual engineering (under equal resistance conditions):
| Copper Wire Diameter (mm) | Equivalent Aluminum Wire Diameter (mm) | Aluminum Cross-Section / Copper Cross-Section |
|—|—|—|
| 0.50 | 0.64 | 1.63 |
| 0.80 | 1.02 | 1.62 |
| 1.00 | 1.28 | 1.63 |
| 1.50 | 1.91 | 1.62 |
| 2.00 | 2.55 | 1.62 |
| 3.00 | 3.83 | 1.63 |
The aluminum wire diameter is always 1.28 times that of copper wire — this conversion relationship is the design standard.
VI. Winding Resistance Calculation Example
6.1 Motor Winding Calculation
Typical case: three-phase asynchronous motor, power 7.5 kW, rated voltage 380 V, series turns per phase 100 turns, using 1.0 mm diameter enameled wire.
Copper enameled wire scheme:
Single turn resistance: R_Cu = 0.0220 Ω/m × π × 0.06 m / 100 = 0.0414 mΩ/turn (assuming average turn length 0.6 m)
Resistance per phase: 100 × 0.0414 = 4.14 mΩ
Total resistance (three-phase): 4.14 × 3 = 12.42 mΩ
Aluminum enameled wire scheme (equal resistance):
Use 1.28 mm diameter aluminum wire, single turn average length increases by 5 percent (slot fill factor decreases).
Single turn resistance: R_Al = 0.0357 Ω/m × π × 0.063 m / 100 = 0.0707 mΩ/turn
Resistance per phase: 100 × 0.0707 = 7.07 mΩ
Total resistance (three-phase): 7.07 × 3 = 21.21 mΩ
Total resistance increases by 70 percent — but weight decreases by 60 percent (although 1.28 mm diameter aluminum wire is larger, density is 70 percent lower).
6.2 Transformer Winding Calculation
Typical case: single-phase transformer, capacity 50 kVA, primary voltage 380 V, secondary voltage 220 V, primary 200 turns.
Copper enameled wire scheme:
Primary current: 50,000 / 380 = 131.6 A
Current density (3 A/mm²): cross-sectional area = 131.6 / 3 = 43.9 mm²
Conductor diameter: √(4 × 43.9 / π) = 7.48 mm
Resistance per meter: 0.0220 / 43.9 = 0.000501 Ω/m
Aluminum enameled wire scheme (equal resistance):
Current density (conservative 2.4 A/mm²): cross-sectional area = 131.6 / 2.4 = 54.8 mm²
Conductor diameter: √(4 × 54.8 / π) = 8.36 mm
Resistance per meter: 0.0357 / 54.8 = 0.000651 Ω/m
Aluminum wire diameter increases by 12 percent (7.48 to 8.36 mm), but weight decreases by 66 percent.
6.3 Winding Calculation Key Points
Key steps for winding resistance calculation:
1. Determine voltage level → select enamel grade.
2. Determine power level → calculate working current.
3. Select current density → calculate cross-sectional area → convert to diameter.
4. Copper-aluminum conversion → under equal resistance, diameter is enlarged by 1.28 times.
5. Turns × average length per turn → total wire length.
6. Total wire length × resistance per unit length → total resistance.
7. Temperature correction → add 34 to 77 percent temperature rise resistance increase.
VII. Test Methods
7.1 DC
Resistance Test
DC resistance test is the basic method for enameled wire resistance testing.
Test equipment: bridge (Kelvin bridge, Wheatstone bridge), micro-ohmmeter, digital multimeter (high precision).
Test standard: IEC 60851-5 (enameled wire resistance test method).
Test method: four-wire method (Kelvin method), eliminate contact resistance influence.
7.2 Measurement Accuracy
Measurement accuracy requirements:
Enameled round wire (diameter ≥ 0.5 mm): ±0.5 percent.
Enameled round wire (diameter < 0.5 mm): ±1.0 percent.
Enameled flat wire: ±0.5 percent.
Measurement length: at least 1 m, recommended 5 to 10 m.
7.3 AC
Resistance Test
AC resistance test is used to evaluate effective resistance in high frequency applications.
Test frequency: 50 Hz, 60 Hz, 400 Hz, 1 kHz, 10 kHz, 100 kHz (select as needed).
Test equipment: LCR meter, impedance analyzer.
Test method: four-wire method to measure impedance, separate resistance component.
7.4 Temperature Rise Test
Temperature rise test is used to evaluate the resistance change of enameled wire under actual working conditions.
Test method: IEC 60851-6 (heat shock test + temperature rise measurement).
Test conditions: energize and heat to specified temperature (such as 155°C, 180°C, 200°C), measure resistance change.
7.5 Resistance Uniformity Test
For mass-produced enameled wire, the longitudinal resistance uniformity should be tested.
Test method: take multiple segments (such as 10 segments) of enameled wire of the same length, measure the resistance of each segment, calculate the standard deviation.
Determination standard: standard deviation / average value ≤ 1 percent.
VIII. Conclusion
The resistance characteristics of enameled aluminum wire are the foundation of engineering design — the R = ρL/A formula runs through the entire aluminum-to-copper substitution design process.
Core conclusions:
1. The resistivity of aluminum is 1.63 times that of copper (20°C), which is the core parameter of electrical design for aluminum-to-copper substitution.
2. Aluminum TCR is 9 percent higher than copper — under the same temperature rise, aluminum wire resistance increases more.
3. Aluminum skin depth is 22 percent less than copper — AC resistance of aluminum wire increases more obviously in high frequency applications.
4. The equal resistance design of aluminum-to-copper substitution requires the conductor diameter to be enlarged by 1.28 times, and the cross-sectional area to be enlarged by 1.63 times.
5. Weight advantage of aluminum-to-copper substitution: despite the larger cross-sectional area, the total weight still decreases by 50 to 66 percent — this is the core value of aluminum-to-copper substitution.
For engineers: resistance calculation must consider temperature correction (TCR) and frequency correction (skin effect) — cannot only look at 20°C DC resistance.
For procurement: when evaluating aluminum enameled wire suppliers, check their resistance uniformity, resistance deviation range, batch stability — these determine the actual performance of the product.
For suppliers: resistance uniformity is the core indicator of quality control — conductor purity (≥ 99.5 percent), annealing process, heat treatment process, enamel thickness will all affect resistance stability.
Future trends: ultra-fine enameled aluminum wire (≤ 0.05 mm), high-purity aluminum core (≥ 99.7 percent), new aluminum-based conductors (aluminum-rare earth alloy, aluminum-copper composite conductor) — will further narrow the resistance gap between aluminum and copper.
