Packaging of Enameled Aluminum Wire I. Importance of Packaging
1.1 Enamel Protection
The enamel thickness of enameled aluminum wire is usually 10 to 50 μm (Grade 0 to 3), thinner than a hair. During storage and transportation, the enamel may be subject to: reel edge scratching, axial compression deformation, adhesion between adjacent wires, and enamel peeling caused by transportation vibration.
The primary task of packaging is to protect the integrity of the enamel — this is the foundation for ensuring the quality of subsequent windings.
1.2 Shape Retention
The softness of aluminum is higher than copper, and enameled aluminum wire is more prone to deformation in the free state. Long-distance transportation, long-term storage, and improper stacking may cause wire ovalization, twisting, and indentation.
Packaging design needs to provide sufficient support, buffer space, and pressure protection for aluminum wire.
1.3 Moisture and Oxidation Prevention
The aluminum oxide film on the aluminum surface continues to grow in humid environments, and the newly generated oxide film can reach 5 to 10 nm per 24 hours (relative humidity 80 percent). This will significantly affect subsequent welding and winding performance.
Packaging must provide moisture-proof sealing — this is the core reason why the packaging requirements of enameled aluminum wire are higher than those of copper wire.
1.4 Quantity Accuracy
B2B customers have extremely high requirements for the quantity accuracy of enameled aluminum wire. The typical acceptance standard is ±2 percent weight. Packaging design must ensure: net weight per reel is traceable, batches are identifiable, and weighing is repeatable.
II. Packaging Types
2.1 Reel Packaging

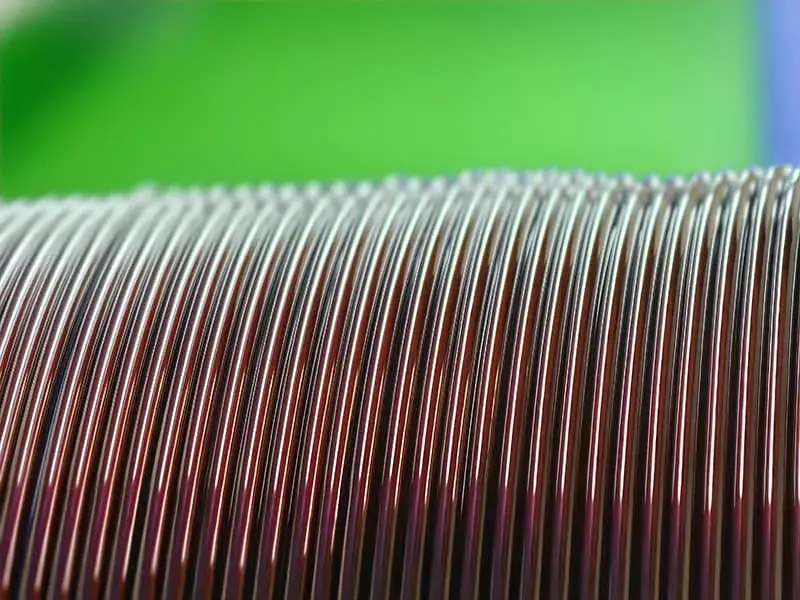

Reel packaging is the most common form of packaging for enameled aluminum wire. The wire is wound on a plastic or wooden reel, and the single reel weight is usually 5 to 50 kg.
Advantages of reel packaging: easy to use, suitable for batch use, reusable, convenient for transportation.
Disadvantages of reel packaging: limited single reel weight (limited by reel size and wire diameter), requires additional moisture-proof measures.
2.2 Bobbin Packaging
Bobbin packaging is another important form of enameled aluminum wire. The wire is tightly wound on a paper or plastic bobbin core, and the single bobbin weight is usually 1 to 10 kg.
Advantages of bobbin packaging: light single bobbin weight, suitable for small batch use, stackable.
Disadvantages of bobbin packaging: bobbin wound wire requires special equipment when taken out, low transportation density.
2.3 Box Packaging
Box packaging is a common form for large quantities of enameled aluminum wire. Multiple reels are packed into corrugated cartons or wooden cases, and the single box weight is usually 20 to 200 kg.
Advantages of box packaging: high efficiency in batch transportation, strong protection, mechanized loading and unloading.
Disadvantages of box packaging: high packaging cost, need to reorganize after opening.
2.4 Bulk Packaging
Bulk packaging is mainly used for large diameter enameled aluminum wire (diameter ≥ 3.0 mm). The wire is directly coiled into large rings, and the weight of each ring can reach 100 to 500 kg.
Advantages of bulk packaging: lowest packaging cost, largest single batch weight.
Disadvantages of bulk packaging: large storage and transportation space, difficult loading and unloading, easy to produce deformation.
2.5 Packaging Form Comparison
The following table summarizes the comparison of key parameters of the 4 packaging forms:
| Packaging Form | Single Weight | Applicable Wire Diameter | Applicable Wire Length | Main Scenarios |
|---|---|---|---|---|
| Reel | 5 to 50 kg | 0.10 to 3.15 mm | 1,000 to 30,000 m | general |
| Bobbin | 1 to 10 kg | 0.05 to 1.50 mm | 200 to 5,000 m | small batch |
| Box | 20 to 200 kg | 0.20 to 3.15 mm | 5,000 to 50,000 m | export |
| Bulk | 100 to 500 kg | 3.00 to 5.00 mm | 1,000 to 3,000 m | large diameter |
III. Reel Specifications
3.1 Reel Material
There are 3 commonly used materials for enameled aluminum wire reels: plastic reel (PP/ABS), wooden reel, paper reel.
Plastic reel: high strength, can be reused 50 to 100 times, unit price 8 to 30 USD, easy to clean.
Wooden reel: highest strength, can be reused 20 to 50 times, unit price 5 to 15 USD, requires fumigation treatment (ISPM 15).
Paper reel: single use, unit price 1 to 3 USD, suitable for one-time export, requires moisture-proof treatment.
Aluminum wire is recommended to use plastic reels — because aluminum wire is soft, the rough surface of wooden reels may scratch the enamel.
3.2 Reel Dimensions
The following table summarizes the key dimensions of commonly used reels for enameled aluminum wire (reference IEC 60851-2, JIS C 3202):
| Reel Code | Barrel Diameter (mm) | Outer Diameter (mm) | Inner Width (mm) | Applicable Wire Diameter (mm) | Single Reel Weight (kg) |
|---|---|---|---|---|---|
| PT-250 | 250 | 320 | 200 | 0.10 to 0.50 | 2 to 5 |
| PT-315 | 315 | 400 | 250 | 0.30 to 1.00 | 5 to 15 |
| PT-400 | 400 | 500 | 315 | 0.50 to 1.50 | 10 to 30 |
| PT-500 | 500 | 630 | 400 | 0.80 to 2.50 | 20 to 50 |
| PT-630 | 630 | 800 | 500 | 1.50 to 3.15 | 30 to 80 |
The design of the reel barrel diameter needs to avoid excessive bending of the wire. The minimum reel barrel diameter is usually 100 to 200 times the wire diameter — too small will cause enamel cracking and deformation.
3.3 Reel Surface Treatment
The reel surface should be smooth, free of burrs, metal chips, and sharp edges. Aluminum wire reels require additional inner surface covering (plastic film or corrugated paper) to prevent the wire from directly contacting the reel, causing indentation or scratching.
IV. Inner Packaging
4.1 Moisture-Proof Bag
Each reel of enameled aluminum wire must be put into a moisture-proof bag — this is the core requirement of aluminum wire packaging. Moisture-proof bag specifications:
Material: PE/PA/PE composite film (PA ≥ 15 μm), PET/AL/PE composite film (AL ≥ 7 μm).
Moisture permeability: ≤ 0.5 g/m²·24h (ASTM E96 test conditions 38°C/90 percent RH).
Sealing: heat sealing, sealing strength ≥ 25 N/15mm.
A desiccant should be placed in the moisture-proof bag — 50 to 200 g silica gel desiccant per reel (compliant with MIL-D-3464 Type II).
4.2 Moisture-Proof Bag Size
The size of the moisture-proof bag should be 5 to 10 cm larger than the outer diameter of the reel — leave 5 to 10 cm sealing margin. The air in the bag should be exhausted as much as possible (vacuum packaging or nitrogen filling).
Vacuum packaging can further reduce the oxygen content in the bag — the protection effect on aluminum wire is 3 to 5 times better than ordinary pressure sealing.
4.3 Buffer Materials
Buffer materials should be used outside the moisture-proof bag — corrugated cardboard, foam plastic, bubble film.
Functions of buffer materials: prevent transportation vibration causing the reel to collide with the outer box, protect the reel edge, absorb impact energy.
Typical buffer thickness: 2 to 5 cm corrugated cardboard on the upper and lower parts of the reel.
4.4 Inner Packaging Process
The inner packaging process of enameled aluminum wire: clean the reel → load the wire → place the desiccant → put it into the moisture-proof bag → vacuum pumping → heat sealing → put it into the buffer material.
Each step needs to be carried out in a dry environment (relative humidity ≤ 60 percent).
V. Outer Packaging
5.1 Corrugated Carton
Corrugated carton is the most commonly used outer packaging for enameled aluminum wire. 5-layer BC corrugated is the mainstream choice, which can withstand stacking weight of 30 to 50 kg.
Carton specifications: single box weight 20 to 200 kg, inner size determined by the number of reels, carton thickness 5 to 8 mm.
The carton should be moisture-proof treated — the surface is covered with PE film or coated with waterproof agent to cope with the high humidity environment of sea transportation.
5.2 Wooden Case
Wooden cases are used for heavy enameled aluminum wire (single box weight > 100 kg) or long-distance sea transportation. The strength of wooden cases is much higher than that of corrugated cartons, which can withstand stacking of 100 to 200 kg.
Export wooden cases must comply with ISPM 15 standard — all wooden parts need heat treatment or methyl bromide fumigation, and IPPC marks must be applied.
5.3 Palletization
Large quantities of enameled aluminum wire should adopt palletized packaging — multiple cartons are stacked on standard pallets (1200 × 1000 mm or 1200 × 800 mm), and fixed with stretch film.
Advantages of palletization: high efficiency of mechanized loading and unloading, high utilization rate of warehouse space, good transportation stability.
Pallet weight: usually 500 to 1,500 kg.
5.4 Outer Packaging Identification
The outer packaging needs to be clearly marked with: enameled aluminum wire, product model, net weight, gross weight, batch number, production date, manufacturer name, handle with care, moisture-proof, this side up, and other marks.
Export packaging also needs to be marked with: Made in China/USA/etc., destination country, HS Code, box number, total number of boxes.
VI. Identification System
6.1 Color Identification
Enameled aluminum wire commonly uses color identification to distinguish specifications, enamel, and batches. Common color codes:
Natural color: standard enameled aluminum wire without colored enamel.
Red: special enamel (such as AIW 200).
Blue: enameled wire for high frequency applications.
Green: Class F enamel.
International standard color cards (RAL, Pantone) facilitate customer identification — suppliers are recommended to use standard color cards.
6.2 Text Identification
Each reel of enameled aluminum wire should have a product label — including the following information:
Product name, specification (diameter, enamel grade), conductor material (aluminum purity 99.5 percent), net weight, batch number, production date, inspector code, manufacturer address.
The label should be pasted on the side or top of the reel — to ensure that the customer can identify the product information without opening the box.
6.3 Barcode/QR Code
Barcode (EAN-13) or QR code is the standard configuration of modern packaging — convenient for warehouse management, batch traceability, inventory counting.
The QR code content should include: product GTIN, batch number, production date, shelf life, inspection results, storage conditions.
6.4 Batch Traceability
The batch traceability system of enameled aluminum wire is the core of quality management. Complete production records, inspection records, packaging records, and transportation records should be established for each batch — to ensure that any quality problem can be traced back to specific production lines, raw materials, and operators.
Complete batch records should be kept for at least 5 years — to meet the requirements of ISO 9001, IATF 16949, AS9100D, and other quality systems.
VII. Storage and Transportation Requirements
7.1 Storage Environment
Enameled aluminum wire should be stored in a dry, ventilated, light-proof environment with temperature 10 to 30°C and relative humidity ≤ 70 percent.
Excessive temperature will accelerate enamel aging. Too low temperature (< 5°C) will make the enamel brittle and easy to crack under impact.
Excessive humidity is the biggest threat to aluminum wire storage — in an environment with 80 percent relative humidity, the aluminum substrate under the enamel can produce obvious oxidation within 6 months.
7.2 Storage Period
Typical storage period:
Grade 0 to 1 enamel: 6 to 12 months.
Grade 2 enamel: 12 to 18 months.
Grade 3 enamel: 18 to 24 months.
Enameled aluminum wire exceeding the storage period should be re-tested for dielectric detection or weldability test — confirming that the performance has not declined before leaving the warehouse.
7.3 Loading and Unloading Operations
The loading and unloading of enameled aluminum wire should avoid: throwing, falling, heavy pressure, lateral impact, long-term tilting.
Correct loading and unloading methods: use forklifts or pallets for handling, keep the reel upright, avoid rolling and dragging.
7.4 Transportation Methods
Land transportation: truck transportation, should use rain-proof tarpaulin to avoid sun and rain.
Sea transportation: container transportation, place desiccant in the box (1 to 2 kg silica gel per cubic meter), vacuum packaging is recommended.
Air transportation: fast, small vibration, but high cost — suitable for emergency orders, high-value products.
VIII. Export Packaging
8.1 Export Compliance Requirements
Exporting enameled aluminum wire needs to comply with the packaging regulations of the destination country — common requirements include:
United States: FIFRA pesticide regulations, UL packaging standards, FDA food contact certification (if used for food-related).
European Union: REACH, RoHS, PACKAGING AND PACKAGING WASTE DIRECTIVE 94/62/EC, ISPM 15.
Japan: JIS Z 0200 packaging standard, ISPM 15 fumigation requirements.
India: BIS certification, ISPM 15.
8.2 Packaging Recycling Identification
Export packaging should be marked with recycling symbols — cartons, plastic reels, and moisture-proof bags should be marked separately.
The European Union requires all packaging materials to have recycling identification — PE/PP is identified with ♳♴, corrugated paper is identified with ♻.
8.3 Special Requirements for Sea Transportation Export
Sea-transported enameled aluminum wire needs to pay special attention to container condensation — when the temperature daily variation is 5 to 10°C, the relative humidity in the box can reach 100 percent.
Moisture-proof measures:
Use 20-foot or 40-foot standard dry containers.
The inner wall of the box is lined with PE film (0.1 to 0.2 mm thick).
Place 100 to 200 g silica gel desiccant in the moisture-proof bag of each reel.
Place container-specific desiccant (500 to 1,000 g/box) in the four corners of the box.
8.4 Export Documents
Exporting enameled aluminum wire should prepare the following documents: commercial invoice, packing list, certificate of origin (C/O or FORM A/E/F), commodity inspection certificate, MSDS, UL/IEC/JIS certification certificate, batch inspection report.
A complete document package can avoid customs clearance delays and reduce customer complaints.
## IX. Conclusion
The packaging of enameled aluminum wire is an important extension of product quality management — it directly affects the state of the product during storage and transportation and the final application performance.
Core principles of packaging design: enamel protection + shape retention + moisture and oxidation prevention + quantity accuracy + complete identification + storage and transportation compliance.
Key packaging requirements: moisture-proof bag sealing, desiccant protection, matching reel specifications, sufficient buffer materials, clear outer packaging identification, complete batch traceability.
For suppliers, packaging design is an extension of the quality management system — investing in packaging technology is investing in brand reputation.
For procurement, when evaluating suppliers, on-site inspections of their packaging workshops, storage conditions, and export experience should be conducted — these are the last mile of product quality.
For exporters, pay attention to destination country regulations, sea transportation condensation, and complete documents — these are the guarantee for the product to reach the customer smoothly.
Future trends: intelligent packaging (RFID, QR code, IoT sensors), environmentally friendly packaging (degradable materials, lightweight design), customized packaging (small batch, multi-specification) — will promote the continuous innovation of enameled aluminum wire packaging technology.
