How to Repair Winding Wire

Introduction

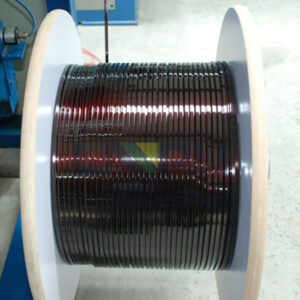

Winding wire (magnet wire) is the core material for electrical equipment such as motors and transformers. During long-term operation, winding wire may be damaged due to various reasons. Timely and correct repair can extend equipment life and reduce economic losses.

This article systematically introduces common damage types, repair methods and key techniques for winding wire to help maintenance personnel master correct repair skills and ensure repair quality and safe equipment operation.

Types of Winding Wire Damage

Varnish Film Damage

Varnish film damage is the most common type of damage to winding wire, mainly manifested as damage or failure of the insulating varnish layer.

• Mechanical Damage: Scratches, friction, or impact causing varnish film damage, exposing the internal conductor.
• Thermal Damage: Local overheating caused by overload or short circuit, causing discoloration, carbonization or shedding of the varnish film.
• Chemical Damage: Corrosion of the varnish film by corrosive substances, causing insulation performance degradation.
• Corona Damage: Erosion of the varnish film by corona discharge in high-voltage environments.
•

Conductor Damage

Conductor damage directly affects electrical performance and may cause equipment shutdown in severe cases.

• Breakage: Conductor breakage caused by mechanical or thermal stress.
• Thinning: Reduced conductor cross-sectional area due to local wear or corrosion.
• Deformation: Changes in conductor shape caused by external forces, such as flattening or twisting.

Overall Insulation Damage

• Aging: Performance degradation of insulation materials during long-term operation.
• Contamination: Insulation performance degradation caused by oil, dust and other deposits.
• Moisture Absorption: Insulation performance deterioration caused by moisture infiltration.

Varnish Film Damage Repair

Small-Range Varnish Film Damage Repair

For small-range varnish film damage, local repair methods can restore insulation performance.

Painting Method: Use insulating varnish compatible with the original varnish for local coating repair.

Repair Steps:

1. Clean the damaged area and remove dirt and carbon deposits using appropriate solvents
2. Lightly sand the damaged edges with fine sandpaper (400 mesh or higher) to form a good bonding surface
3. Apply an appropriate amount of compatible insulating varnish, with coverage slightly exceeding the damaged area
4. Perform curing treatment at appropriate temperature and time according to varnish type
5. Inspect repair quality after curing

Precautions:

• Use insulating varnish compatible with the original varnish, preferably from the same manufacturer
• Coverage should exceed the damaged area by at least 5mm to ensure complete coverage
• Ensure complete curing before operation, otherwise it will affect repair effectiveness
• For high-voltage equipment, pressure tests should be performed after repair

Large-Range Varnish Film Damage Repair

Large-range varnish film damage usually requires more thorough repair solutions.

Rewinding: Remove the damaged partial or entire winding and rewind with new winding wire.

Applicable Conditions:

• Damage area exceeds 20% of total winding area
• Insulation performance cannot be restored after multiple repairs
• Damage causes winding deformation making it unusable
• Repair cost approaches or exceeds new winding cost

Conductor Breakage Repair

Welding Repair Method

Welding is the most common repair method for conductor breakage, providing firm connections and good electrical performance.

Preparation:

• Locate the breakage position through resistance measurement or visual inspection
• Strip insulation varnish on both sides of the break, length determined by wire thickness
• Clean the conductor surface, removing oxide layers and contaminants
• Prepare welding tools and solder, selecting appropriate welding materials based on wire material

Welding Steps:

1. Align the broken conductor ends on both sides
2. Use appropriate welding method for welding
3. Weld should be firm, smooth, without pores or slag inclusions
4. Clean welding residue and spatter
5. Apply insulation treatment to the weld point

Welding Method Selection:

Breakage Type	Recommended Method	Characteristics
Fine wire (<1mm)	Soldering	Simple operation, suitable for fine wires
Heavy wire (>1mm)	Silver or copper welding	High strength, good conductivity
Stranded wire	Silver or resistance welding	Reliable contact, no strand damage

Crimping Repair Method

For large cross-section conductors, crimping method can be used for repair with simple operation and reliable connection.

Crimping Steps:

1. Strip insulation varnish on both sides of the break
2. Insert matching crimping sleeve based on wire specifications
3. Use specialized crimping tool for crimping with appropriate pressure
4. Inspect crimping quality including appearance and electrical performance

Twisting Repair Method

Twisting method can be used in emergencies but only as a temporary measure.

Twisting Steps:

1. Strip insulation varnish, stripping length approximately 20-30mm
2. Twist both ends of the conductor together, with at least 5 turns
3. Apply insulating varnish or insert insulating sleeve to ensure reliable insulation
4. Secure to prevent loosening

Winding Short Circuit Repair

Short Circuit Cause Analysis

Winding short circuit is one of the most serious faults in electrical equipment, requiring careful analysis.

• Insulation Aging: Insulation material failure during long-term operation.
• Overvoltage: Lightning or switching overvoltage breakdown of insulation.
• Mechanical Damage: Insulation damage caused by vibration or impact.
• Contamination and Moisture: Insulation performance degradation caused by contaminants or moisture.

Short Circuit Point Location

Accurate location of the short circuit point is key to repair.

• Insulation Resistance Measurement: Use megohmmeter to measure insulation resistance to ground and between phases
• Dielectric Loss Measurement: Measure dielectric loss factor to determine insulation aging degree
• Partial Discharge Detection: Detect partial discharge signals to locate insulation defects
• Infrared Thermal Imaging: Locate fault points through temperature anomalies

Short Circuit Repair Steps

1. Locate short circuit point through detection methods
2. Separate the shorted winding
3. Re-insulate and treat the damaged area
4. Conduct comprehensive testing to confirm
5. Perform complete machine testing and verification

Transformer Winding Repair

Transformer Winding Damage Characteristics

Transformer winding damage is usually more complex with high technical requirements for repair.

• High operating voltage with strict insulation requirements
• Complex winding structure with difficult repair
• May involve multiple winding repairs
• Oil-immersed transformers also require insulation oil treatment

Transformer Winding Repair Process

Disassembly and Inspection:

1. Drain oil (oil-immersed transformer), store transformer oil properly
2. Remove related components including bushings and tap changers
3. Hoist the tank body, small transformers can be transported as a whole
4. Locate damaged winding through detection

Repair Stage:

1. Remove damaged winding, operate carefully to avoid damaging the core
2. Clean the core and check for core damage
3. Wind new winding according to original parameters
4. Install and test to ensure correct assembly

Assembly Stage:

1. Reinstall the tank body in position
2. Vacuum oil filling (oil-immersed type) to ensure oil fully penetrates the winding
3. Standing inspection to allow oil to fully impregnate the winding
4. Factory testing including various electrical tests

Precautions

• Transformer repair requires professional equipment and technology, recommended to be performed by professional repair units
• Comprehensive electrical tests are required after repair including insulation resistance, pressure, and ratio tests
• Insulation oil needs treatment or replacement to ensure oil performance
• Detailed records should be maintained throughout the repair process

Motor Winding Repair

Motor Winding Damage Types

• Stator Winding Damage: Common in high-voltage and large motors, manifested as grounding, short circuit or open circuit
• Rotor Winding Damage: Common in wound rotor motors, such as collector rings and brush holders
• Fault Manifestations: Reduced insulation resistance to ground, phase-to-phase short circuit, winding open circuit

Motor Winding Repair Methods

Local Repair:

• Suitable for small damage range, only replace damaged coils
• Keep other coils intact to reduce repair workload
• Testing required after repair to confirm

Complete Rewinding:

• Suitable for large damage range, remove all windings
• Rewind all windings according to original design parameters
• Post-repair performance can reach or approach original levels

Motor Winding Repair Steps

1. Record original data including wire diameter, turns, pitch, and parallel paths
2. Remove old winding and record winding type and binding method
3. Clean core slots removing dirt and old insulation
4. Wind new winding according to recorded data
5. Insert and install winding into core slots
6. Varnish impregnation and drying to improve insulation strength and mechanical strength
7. Testing including insulation resistance, pressure, and no-load tests

Repair Quality Inspection

Visual Inspection

• Repaired area should be smooth without sharp corners or burrs
• Insulation layer should be complete and continuous without bubbles or detachment
• Weld points should be firm and smooth without cold solder joints or slag inclusions
• Winding arrangement should be orderly with slot wedges securely fastened

Electrical Performance Inspection

• Insulation Resistance Test: Use megohmmeter to measure winding insulation resistance to ground and between phases
• Pressure Test: Conduct power frequency or impulse pressure tests to verify insulation strength
• DC Resistance Test: Measure winding DC resistance to confirm phase balance without open or poor contacts
• No-Load Test: Conduct no-load operation test after motor repair to check smooth operation without abnormal sounds

Inspection Standards

Inspection Item	Qualification Standard	Description
Insulation Resistance	≥1MΩ (low voltage) / ≥100MΩ (high voltage)	Winding insulation resistance to ground
Pressure Test	No breakdown or flashover	Test voltage per specifications
DC Resistance	Three-phase balanced, error ≤2%	Resistance value deviation between phases
Temperature Rise Test	Temperature not exceeding rated value	Temperature rise under rated load

Safety Precautions

Personnel Requirements

• Maintenance personnel should have relevant qualification certificates
• Understand equipment structure and operating principles
• Be familiar with safety operating procedures and emergency handling methods
• Correctly use personal protective equipment

On-Site Safety

• Must disconnect power before maintenance and take measures to prevent accidental power-on
• Post warning signs to prevent misoperation
• Keep the workplace clean and organized
• Equip with appropriate fire-fighting equipment

Post-Maintenance Handling

• Clean the maintenance site and restore equipment to original condition
• Remove temporary grounding wires and other safety measures
• Restore safety devices ensuring protection functions are normal
• Complete work completion procedures and record maintenance information

Preventive Measures

Operation and Maintenance

• Conduct regular inspections to promptly detect abnormalities
• Keep equipment clean and dry to prevent contamination and moisture
• Avoid long-term overload operation and strictly control load
• Record operating parameters and promptly handle abnormalities

Environmental Control

• Control operating environment temperature and avoid excessive temperatures
• Avoid humid and corrosive environments
• Reduce vibration and mechanical stress
• Implement lightning and overvoltage protection

Protection Devices

• Configure appropriate overload protection for timely fault removal
• Install temperature monitoring devices to monitor operating temperature
• Use appropriate relay protection for rapid fault removal

Conclusion

Winding wire repair is a highly professional work requiring maintenance personnel to have solid theoretical knowledge and rich practical experience.

Key Points for Repair:

• Accurately assess damage types and extent, select appropriate repair methods
• Strictly follow process requirements to ensure repair quality
• Conduct comprehensive repair quality inspections to confirm repair effects
• Maintain detailed repair records and establish complete technical archives

Important Notes:

• Repair of important equipment recommended to be performed by professional repair units
• Comprehensive electrical tests are mandatory after repair
• Establish complete repair archives recording repair process and test data
• Important data should be preserved long-term for future reference

Correct repair can extend equipment life, but prevention-oriented approach is fundamental to ensure long-term stable equipment operation. Through strengthening operation and maintenance, improving operating environment, and perfecting protection configuration, the occurrence of winding wire damage can be effectively reduced.

---
