High Frequency Industry: Copper Or Aluminum Enameled Wire

Introduction

In the field of high-frequency industrial applications, the choice of magnet wire has an important impact on equipment performance and efficiency. High-frequency application scenarios such as inverters, switching power supplies, and induction heating equipment place special requirements on magnet wire.

Copper enameled wire and aluminum enameled wire are two common conductor materials, each with its own characteristics in high-frequency environments. Understanding these differences is crucial for correct material selection.

This article provides a detailed analysis of the performance comparison between copper and aluminum enameled wire in high-frequency applications, helping engineers and procurement personnel make informed choices.

Characteristics and Challenges of High-Frequency Applications

What are High-Frequency Applications

High-frequency applications typically refer to electrical equipment and systems operating in the frequency range from several kilohertz to hundreds of kilohertz.

Variable Frequency Drives (VFDs): Power electronic devices that regulate motor speed by changing output frequency, widely used in industrial automation, HVAC, and other fields.

Switching Power Supplies: Power devices that convert AC to DC, with advantages of compact size and high efficiency, serving as standard power sources for modern electronic equipment.

Induction Heating: Equipment that heats materials using the electromagnetic induction principle, achieving rapid heating through eddy currents generated in metals, applied in metal melting, heat treatment, and welding.

Main Challenges in High-Frequency Environments

In high-frequency environments, current transmission exhibits completely different characteristics from DC, placing higher demands on magnet wire.

• Skin Effect: High-frequency current tends to flow on the conductor surface, reducing effective conductive cross-sectional area and increasing equivalent resistance.
• Proximity Effect: High-frequency currents in adjacent conductors affect each other, causing non-uniform current distribution.
• Increased Power Loss: Due to skin and proximity effects, power losses at high frequencies are much higher than at DC.
• Heat Dissipation Issues: Heat generated from high-frequency losses needs effective dissipation, otherwise affecting equipment reliability and lifespan.

Detailed Explanation of Skin Effect and Proximity Effect

Skin Effect

When AC frequency increases, current tends to flow on the conductor surface. Skin depth can be estimated by the formula:

• Copper at 20°C: δ ≈ 66/√f (mm), where f is frequency (Hz)
• Aluminum: δ ≈ 82/√f (mm)

Skin Depth at Typical Frequencies:

Frequency	Copper Skin Depth	Aluminum Skin Depth
1 kHz	2.09 mm	2.59 mm
10 kHz	0.66 mm	0.82 mm
50 kHz	0.30 mm	0.37 mm
100 kHz	0.21 mm	0.26 mm
200 kHz	0.15 mm	0.18 mm

Proximity Effect

The proximity effect causes current distribution to become non-uniform when high-frequency currents in adjacent conductors interact with each other.

• When multiple strands are twisted, current distribution becomes more non-uniform
• Adjacent coils in windings affect each other’s current distribution
• Effective resistance further increases

Advantages of Copper Enameled Wire in High-Frequency Applications

Electrical Conductivity

• Higher conductivity: Copper conductivity is approximately 1.6 times that of aluminum, maintaining better conductivity even under skin effect
• Deeper skin depth: Although copper and aluminum have similar skin depths, copper’s higher conductivity means lower resistance
• Lower losses: Under the same frequency and cross-section, copper conductors have lower losses

Thermal Performance

• Excellent thermal conductivity: Copper thermal conductivity is approximately twice that of aluminum (401 vs 237 W/(m·K))
• Higher melting point: Copper’s melting point is 1083°C, much higher than aluminum’s 660°C
• Temperature stability: Copper has moderate temperature coefficient, stable performance within operating temperature range

Mechanical Performance

• Higher tensile strength: Copper tensile strength is approximately 195-245 MPa
• Better flexibility: Copper is easier to form and bend, suitable for complex winding designs
• Good fatigue resistance: Better durability in high-frequency vibration environments

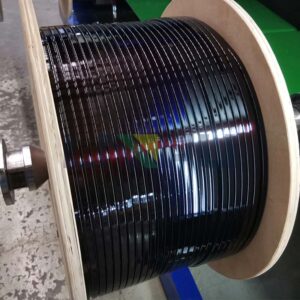

Considerations for Aluminum Enameled Wire in High-Frequency Applications

Applicability of Aluminum

• Higher resistance: Aluminum resistivity is approximately 1.6 times that of copper (0.0282 vs 0.01724 Ω·mm²/m)
• Skin effect impact: Due to similar skin depths but lower conductivity, equivalent resistance is higher
• Thermal limitations: Lower thermal conductivity means poorer heat dissipation

Viable Applications for Aluminum

• Low-frequency applications: Can be considered where operating frequency is below 10 kHz
• Cost-sensitive projects: Can be chosen where high-frequency losses are acceptable and cost is the main consideration
• Weight-sensitive applications: Aluminum’s lightweight advantage is still an important factor

Application of Litz Wire in High-Frequency

What is Litz Wire

Litz wire consists of multiple fine strands twisted together, with each strand insulated, specifically designed for high-frequency applications.

• Increases effective conductive area
• Counteracts skin effect
• Reduces proximity effect
• Improves high-frequency fill factor

Litz Wire vs Solid Conductor

Comparison	Solid Conductor	Litz Wire
High-frequency loss	High	Low
Applicable frequency	<10 kHz	>10 kHz
Manufacturing cost	Low	High

Application Scenario Analysis

Variable Frequency Drives

Operating frequency: Usually 2-20 kHz, some high-frequency models up to 40 kHz

Recommendation: Copper enameled wire or copper litz wire is recommended for ensuring high efficiency and reliability.

Switching Power Supplies

Operating frequency: From tens of kHz to hundreds of kHz, some high-frequency models can reach above 1 MHz

Recommendation: Copper enameled wire is strongly recommended. Multi-strand litz wire is almost essential for ultra-high frequencies (>200 kHz).

Induction Heating Equipment

Operating frequency: From several kHz to hundreds of kHz, depending on heating depth requirements

Recommendation: Usually uses copper tubes or copper litz wire, combined with water cooling systems.

Selection Guide

Selection Factor Summary

Factor	Copper Enameled Wire	Aluminum Enameled Wire
High-frequency conductivity	Excellent	Good
Thermal conductivity	Excellent	Good
Mechanical strength	Excellent	Medium
Weight	Medium	Excellent
Cost	Medium	Excellent
High-frequency loss	Low	Higher

Recommendations

Prioritize copper enameled wire when:

• Operating frequency is above 10 kHz
• High efficiency and reliability are required
• Space is limited, requiring maximum conductivity
• Medium to large power equipment

Consider aluminum enameled wire when:

• Operating frequency is below 5 kHz
• Small power equipment
• Cost is the primary consideration
• Weight-sensitive with ability to accept larger cross-section

Cost-Benefit Analysis

Material Cost Comparison

Parameter	Copper	Aluminum
Relative material cost	100%	About 50-60%
Cross-section requirement ratio	1.0x	About 1.6x
Weight ratio	1.0x	About 0.5x

Conclusion

In high-frequency industrial applications, conductor material selection has an important impact on equipment performance, efficiency, and reliability.

For most high-frequency applications, copper enameled wire is the best choice. Its excellent electrical conductivity, good thermal conductivity, and mechanical properties enable stable performance in high-frequency environments, achieving high efficiency and reliable operation.

Aluminum enameled wire should be carefully considered in high-frequency applications. Although it has advantages in cost and weight, its higher resistance and lower thermal conductivity may lead to higher power losses and heat dissipation challenges.

Litz wire technology provides an optimized solution for high-frequency applications. For applications above 50 kHz, copper litz wire is almost essential, effectively reducing high-frequency losses and improving system efficiency.

The final choice should be based on specific application requirements, frequency range, power level, cost budget, and reliability requirements. For most industrial high-frequency applications, copper enameled wire provides the best performance and reliability balance.

---
