I. Introduction
Aluminum wire has become an essential material in the manufacturing of HVAC (Heating, Ventilation, and Air Conditioning) compressors, playing a critical role in the efficient and reliable operation of refrigeration and air conditioning systems worldwide. As the demand for energy-efficient and cost-effective HVAC solutions continues to grow, understanding the technical characteristics, advantages, and considerations of aluminum wire in compressor applications has become increasingly important for engineers, manufacturers, and service professionals. HVAC compressors represent one of the most demanding applications for magnet wire, requiring materials that can withstand high temperatures, refrigerant environments, and continuous operation over extended periods. The selection of conductor material—particularly the choice between aluminum and copper—directly impacts the performance, efficiency, and longevity of compressor motors.
This comprehensive guide examines the technical aspects of aluminum wire for HVAC compressors, exploring its properties, advantages, challenges, and best practices for successful implementation. The information presented here is valuable for those involved in the design, manufacturing, maintenance, and repair of HVAC systems and their components.
II. Fundamentals of HVAC Compressor Technology
2.1 The Role of Compressors in HVAC Systems
Compressors serve as the heart of refrigeration and air conditioning systems, responsible for compressing refrigerant gas and facilitating the heat transfer cycle that enables cooling and heating. In residential, commercial, and industrial HVAC applications, compressors must operate reliably under demanding conditions for thousands of hours each year. The compressor motor is the driving force that powers the compression mechanism, whether reciprocating, scroll, screw, or centrifugal in design. The motor windings, typically made from magnet wire, convert electrical energy into mechanical energy that drives the compression process.
The performance and reliability of these motor windings directly determine the efficiency and service life of the compressor. Modern HVAC systems operate with varying loads and cycling patterns, requiring motors that can withstand repeated starting and stopping, voltage variations, and thermal cycling. The magnet wire used in compressor motors must maintain its electrical and mechanical properties throughout the demanding operational life of the equipment.
2.2 Compressor Motor Requirements
HVAC compressor motors face unique challenges that distinguish them from many other motor applications. Understanding these requirements is essential for appreciating why specific wire materials and designs are selected. Thermal stress is perhaps the most significant challenge. Compressor motors operate at elevated temperatures due to internal losses and the heat transfer from the compression process.
In hermetic and semi-hermetic compressors, the motor operates within the refrigerant environment, which can reach high temperatures during operation. Quality magnet wire must maintain its insulation integrity and electrical properties at these elevated temperatures throughout the equipment’s service life. Chemical exposure presents another significant challenge. The refrigerants and refrigeration oils used in HVAC systems can, over time, affect certain insulation materials.
Wire selections must account for compatibility with the specific refrigerant and oil combinations used in the system. Mechanical stresses from vibration, thermal expansion cycling, and the forces generated during compressor operation require wire with good adhesion, flexibility, and fatigue resistance. The wire must remain securely bonded to the conductor surface without cracking or delaminating over thousands of thermal cycles.
2.3 Hermetic and Semi-Hermetic Compressor Designs
The majority of HVAC compressors use hermetic or semi-hermetic designs where the motor is enclosed within the refrigerant housing. This design offers advantages in terms of contamination protection and efficiency but places unique demands on the wire materials. In hermetic compressors, the motor operates completely enclosed within a sealed housing, exposed to refrigerant vapor and oil throughout its operational life. Any degradation of wire insulation can lead to premature failure, making material selection particularly critical.
The wire must be capable of performing reliably for the expected 15-25 year service life of residential equipment or 20-30 years for commercial systems. Semi-hermetic compressors offer the advantage of serviceability, allowing the compressor motor to be accessed for repair or replacement if necessary. However, the fundamental requirements for wire performance remain the same as for hermetic designs. Open-type compressors, where the motor is separate from the compressor mechanism, are less common in HVAC applications but present their own set of wire requirements related to environmental exposure and accessibility for maintenance.
III. Properties and Characteristics of Aluminum Wire
3.1 Physical Properties of Aluminum
Aluminum possesses distinct physical properties that make it suitable for certain magnet wire applications while requiring careful consideration in others. Aluminum has a density of approximately 2.70 g/cm³, significantly lower than copper’s density of 8.89 g/cm³. This means that for a given conductor length and resistance, aluminum conductor weighs only about 30% as much as a copper conductor. This weight advantage is particularly valuable in applications where mass affects performance, such as in certain types of equipment or where shipping costs are significant.
The electrical conductivity of aluminum is approximately 61% of that of copper, expressed on a volumetric basis. This means that to achieve the same electrical resistance, an aluminum conductor must have approximately 64% larger cross-sectional area than a copper conductor. While this larger size might seem like a disadvantage, it is often offset by the weight savings and cost benefits. Aluminum has a thermal conductivity approximately twice that of copper, which can be advantageous in heat dissipation within motor windings.
However, aluminum’s coefficient of thermal expansion differs from both copper and the insulation materials commonly used, requiring careful consideration in the design of magnet wire constructions.

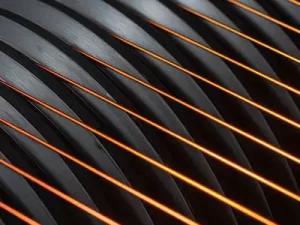

3.2 Aluminum Magnet Wire Construction
Aluminum magnet wire for HVAC compressor applications is manufactured using processes similar to those for copper magnet wire, with modifications to account for aluminum’s different mechanical and chemical properties. The conductor is typically produced from electrical-grade aluminum (E-aluminum) that meets specified purity requirements for electrical conductivity and is free from detrimental impurities. The aluminum rod is drawn to the required conductor size through a series of dies, with intermediate annealing to achieve the desired temper and surface finish. Surface preparation is particularly critical for aluminum magnet wire because the oxide layer that forms naturally on aluminum surfaces can affect adhesion of the enamel coating.
Proper cleaning and surface treatment ensure good bonding between the conductor and the insulation. The enamel coating systems used on aluminum magnet wire must be compatible with the aluminum surface and provide the necessary electrical insulation, thermal resistance, and chemical resistance for the intended application. Polyester, polyesterimide, and polyamideimide enamel systems are commonly used depending on the temperature and refrigerant compatibility requirements.
3.3 Comparison with Copper Wire
The selection between aluminum and copper magnet wire involves careful consideration of multiple factors, each with its own implications for performance and cost. Copper offers higher electrical conductivity, allowing smaller conductor sizes for a given current capacity. Copper’s superior ductility and strength make it well-suited for fine wire manufacturing and applications requiring excellent winding characteristics. The excellent adhesion of most enamel systems to copper surfaces is well-established through decades of manufacturing experience.
Aluminum provides significant weight and cost advantages. The lower density means substantial weight savings in applications where conductor mass matters, while the lower raw material cost of aluminum compared to copper offers economic benefits in material-constrained applications. The conductivity difference means aluminum conductors must be larger in cross-section to carry the same current as copper. In tight winding spaces, this size difference may limit the feasibility of aluminum substitution, particularly in smaller motors.
The choice between aluminum and copper often involves trade-offs between these competing considerations.
IV. Advantages of Aluminum Wire in HVAC Compressors
4.1 Weight Benefits
Weight reduction represents one of the primary advantages of aluminum wire in HVAC compressor applications, with implications for both performance and economics. In larger commercial and industrial compressors, the reduction in conductor weight can be substantial. A compressor motor using aluminum windings may weigh significantly less than an equivalent copper-wound motor, reducing the structural requirements for mounting and support. The weight advantage also benefits transportation and installation.
Heavier equipment requires more robust handling equipment and may incur higher shipping costs. In some applications, particularly rooftop units and other elevated installations, reduced weight simplifies handling and reduces installation labor costs. However, the weight advantage must be balanced against the larger conductor cross-section required for aluminum. In smaller motors where space is constrained, the size increase may negate or even eliminate the weight advantage.
4.2 Cost Efficiency
Economic considerations often drive the selection of aluminum wire, particularly in high-volume applications where material costs represent a significant portion of total product cost. Aluminum raw material costs have historically been lower than copper costs, providing potential for cost savings in wire purchases. The magnitude of savings depends on market prices for both materials, which fluctuate based on supply, demand, and commodity market conditions. In larger motors where conductor material constitutes a larger portion of total material cost, the economic advantage of aluminum may be substantial.
Conversely, in smaller motors where the absolute amount of conductor material is small, the cost advantage may be less significant. Manufacturing efficiencies can also favor aluminum in certain applications. The larger conductor cross-section of aluminum wire may simplify winding processes and reduce the incidence of wire breaks during manufacturing, potentially improving production yields and reducing processing costs.
4.3 Thermal Performance
Aluminum’s thermal characteristics offer both advantages and considerations in compressor motor applications. The higher thermal conductivity of aluminum can provide benefits in heat dissipation from motor windings. Better heat transfer from the conductor to the surrounding refrigerant or cooling medium can contribute to lower operating temperatures, potentially extending motor life and improving efficiency. Aluminum’s lower thermal mass compared to copper may provide faster response to thermal changes during load variations and cycling.
This characteristic can be advantageous in applications with frequent load changes or intermittent operation. However, the thermal expansion characteristics of aluminum differ from copper and from common insulation materials. These differences must be considered in the design of the wire and the winding to ensure reliable performance through thermal cycling over the equipment’s service life.
4.4 Resource Considerations
Sustainability and resource availability represent increasingly important considerations in material selection for many manufacturers and end users. Aluminum is one of the most abundant elements in the Earth’s crust, representing approximately 8% of the solid surface. This abundance provides greater confidence in long-term supply availability compared to copper, which is less abundant and subject to more concentrated geographic distribution of reserves. The recycling of aluminum requires only about 5% of the energy needed to produce new aluminum from bauxite ore.
This energy efficiency makes aluminum an attractive choice from a sustainability perspective, particularly as recycled content in wire products continues to increase.
V. Challenges and Considerations
5.1 Surface Oxidation
Aluminum forms a naturally occurring oxide layer on its surface that, while providing corrosion resistance in many environments, creates unique challenges for magnet wire manufacturing and performance. The aluminum oxide layer forms rapidly when the bare conductor is exposed to air, reaching a stable thickness within minutes. This oxide layer can interfere with enamel adhesion if not properly managed during the wire manufacturing process. Quality aluminum magnet wire producers employ careful surface preparation and cleaning procedures to ensure good bonding between the enamel and the aluminum conductor.
In compressor applications, the oxide layer does not typically present ongoing problems once the enamel coating is properly applied and cured. The enamel provides a complete barrier between the aluminum and the refrigerant environment, preventing further oxidation under normal operating conditions.
5.2 Connection and Termination Challenges
The connection of aluminum magnet wire presents considerations that differ from copper wire applications, requiring attention to proper techniques and materials. Aluminum forms high-resistance oxide films at connection points if not properly prepared. The use of appropriate connection methods, including mechanical connectors designed for aluminum and proper stripping techniques, is essential for reliable electrical connections. The thermal expansion characteristics of aluminum differ from connection hardware materials, potentially causing loosening over thermal cycles if connections are not properly designed and installed.
Spring-pressure type connections and regular maintenance inspection are often recommended for aluminum wire connections in accessible applications. In hermetic compressor applications, where the motor windings are not accessible for field service, these connection concerns are addressed during the original manufacturing process using controlled factory procedures that ensure reliable, permanent connections.
5.3 Enamel Adhesion
Ensuring durable adhesion between the enamel coating and the aluminum conductor requires careful attention to surface preparation and process control during wire manufacturing. The surface roughness and cleanliness of the aluminum conductor significantly affect enamel adhesion. Proper cleaning to remove drawing lubricants, oxide films, and other contaminants is essential. Some manufacturers employ chemical cleaning or etching processes to optimize the aluminum surface for enamel adhesion.
The compatibility between the specific enamel formulation and the aluminum surface must be verified. Not all enamel systems are equally suitable for aluminum, and manufacturers select coating systems that have demonstrated reliable performance on aluminum conductors. Quality assurance testing, including thermal cycling tests and solvent resistance tests, verifies that the enamel adhesion meets the requirements for the intended application. These tests are particularly important for compressor applications where the wire will be subjected to demanding thermal and chemical environments over an extended service life.
5.4 Size and Space Constraints
The larger cross-sectional area required for aluminum conductors compared to copper for equivalent conductivity creates potential space constraints in some applications. In small motors where winding space is limited, the larger aluminum conductor size may prevent its use. The fill factor—the percentage of the winding space occupied by conductor—may become unacceptable, requiring more turns with smaller conductor or other design modifications. Motor designers must carefully evaluate the winding space constraints when considering aluminum as an alternative to copper.
In some cases, the larger conductor size may necessitate redesign of the motor lamination or housing to accommodate the windings. Modern design tools and optimization techniques can help address these challenges, allowing designers to explore the trade-offs between conductor material selection and motor performance characteristics.
VI. Application Guidelines and Best Practices
6.1 Motor Design Considerations
Successful implementation of aluminum wire in HVAC compressor motors requires careful attention to design factors that affect performance and reliability. Thermal design must account for aluminum’s different properties, including its thermal conductivity and heat capacity. The temperature rise of the winding under load depends on the balance between heat generation and heat dissipation, which may differ between aluminum and copper windings. Magnetic design must consider the larger conductor cross-section and its effects on the magnetic circuit.
The slot fill factor, which affects the magnetic flux density and motor characteristics, may require different optimization approaches for aluminum-wound motors compared to copper. Mechanical design must address the different thermal expansion characteristics of aluminum compared to copper and insulation materials. The winding design should accommodate thermal cycling without causing excessive stress on the enamel coating or the conductor itself.
6.2 Manufacturing Process Requirements
The manufacturing of aluminum magnet wire for compressors requires processes tailored to aluminum’s specific characteristics. Conductor manufacturing involves careful control of the drawing process to achieve proper surface finish and dimensional accuracy. Annealing processes must be optimized to achieve the desired conductor properties without excessive grain growth or other defects. Surface preparation prior to enamel application is particularly critical for aluminum.
The cleaning and surface treatment processes must remove all contaminants and provide an optimal surface for enamel adhesion. Enamel application follows similar principles to copper magnet wire production but with process parameters adjusted for the aluminum substrate. The coating and baking cycles must be carefully controlled to achieve proper cure and adhesion.
6.3 Quality Assurance and Testing
Rigorous quality assurance is essential to ensure that aluminum magnet wire meets the demanding requirements of HVAC compressor applications. Electrical testing verifies that the wire meets specified dielectric strength, insulation resistance, and other electrical performance requirements. These tests are typically performed on 100% of production as a pass/fail screening. Mechanical testing verifies that the enamel adhesion, flexibility, and other mechanical properties meet requirements.
These tests may include scrape tests, elongation tests, and thermal shock tests. Application-specific testing may be required to verify compatibility with the intended refrigerant and oil environment. This testing verifies that the wire will perform reliably over the expected service life under the conditions it will encounter in the compressor application.
VII. Selection Criteria and Decision Factors
7.1 Application Suitability Assessment
Not all HVAC compressor applications are equally suited to aluminum wire. Careful assessment of application requirements helps determine whether aluminum is appropriate. Motor size is an important consideration. Aluminum wire is more commonly used in larger motors where the weight and cost advantages are more significant and where space constraints are less limiting.
Small motors may not be suitable for aluminum due to space limitations. Performance requirements must be evaluated against the capabilities of aluminum designs. Motors requiring very high efficiency or very low temperature rise may benefit from copper’s superior conductivity. Economic analysis should compare the total cost of ownership, including initial material and manufacturing costs, transportation, and any performance implications, rather than focusing solely on wire cost.
7.2 Refrigerant Compatibility
The refrigerant used in the HVAC system affects the suitability of aluminum wire and the required enamel system. Common refrigerants including R-410A, R-22, R-134a, and newer lower-GWP refrigerants have varying effects on different wire insulation materials. The compatibility of the wire enamel with the specific refrigerant must be verified. Modern refrigerants with different chemical compositions than traditional refrigerants may require evaluation of compatibility with aluminum wire insulation.
Testing and field experience help establish confidence in specific refrigerant-wire combinations. Oil compatibility is also important because the compressor lubrication system uses oil that circulates with the refrigerant. The aluminum wire enamel must be compatible with the specific oil used in the system.
7.3 Manufacturer Capabilities
The manufacturing capability and experience of the wire supplier are important factors in ensuring successful implementation of aluminum wire. Quality magnet wire manufacturers have developed specialized processes for aluminum wire that address the unique challenges of the material. Experience with aluminum in the specific application—HVAC compressor motors—is particularly valuable. Technical support from the wire manufacturer can assist in material selection, design guidance, and troubleshooting.
Access to application engineering resources helps ensure successful implementation. Quality certifications and testing capabilities provide confidence that the wire meets applicable standards and will perform reliably in the intended application.
VIII. Conclusion
Aluminum wire represents a viable and often advantageous alternative to copper for HVAC compressor motor windings, offering benefits in weight, cost, and thermal performance that can be valuable in appropriate applications. The selection between aluminum and copper should be based on careful evaluation of the specific application requirements, design constraints, and economic factors. The technical characteristics of aluminum, including its lower density, lower cost, and good thermal conductivity, provide benefits that have been successfully leveraged in many HVAC compressor designs. However, the challenges related to surface oxidation, connection, enamel adhesion, and size constraints require careful attention during material selection, design, and manufacturing.
Successful implementation of aluminum wire in HVAC compressor applications depends on proper attention to these technical considerations and the use of quality materials and processes from experienced manufacturers. When properly specified and manufactured, aluminum magnet wire provides reliable performance in the demanding HVAC compressor environment. As the HVAC industry continues to evolve, with increasing focus on efficiency, sustainability, and cost-effectiveness, aluminum wire will continue to play an important role in compressor motor design. Understanding its properties, advantages, and considerations enables engineers and manufacturers to make informed decisions that optimize performance and value in HVAC systems.
