The application of aluminum wire in motor windings is one of the most debated and promising technical topics in the electromagnetic wire industry. Over the past few decades, from home appliance compressors to industrial induction motors, from new energy vehicle drive systems to aerospace equipment, aluminum wire motors have evolved from a “cost-driven alternative” to a “fully validated mature technology route.”
Against the backdrop of continued copper price volatility and increasing manufacturing cost-reduction pressures, more and more motor manufacturers are seriously evaluating the feasibility of aluminum wire in motor windings. However, aluminum wire and copper wire have objective differences in conductivity, mechanical properties, and process requirements. How to find the balance between cost advantages and technical requirements is a challenge that every engineering technician and procurement decision-maker must face.
This article provides a systematic, objective, and actionable technical reference guide for aluminum wire motors from six dimensions: material characteristics, motor application scenario adaptability, core performance data, manufacturing process key points, industry application cases, and selection specifications.

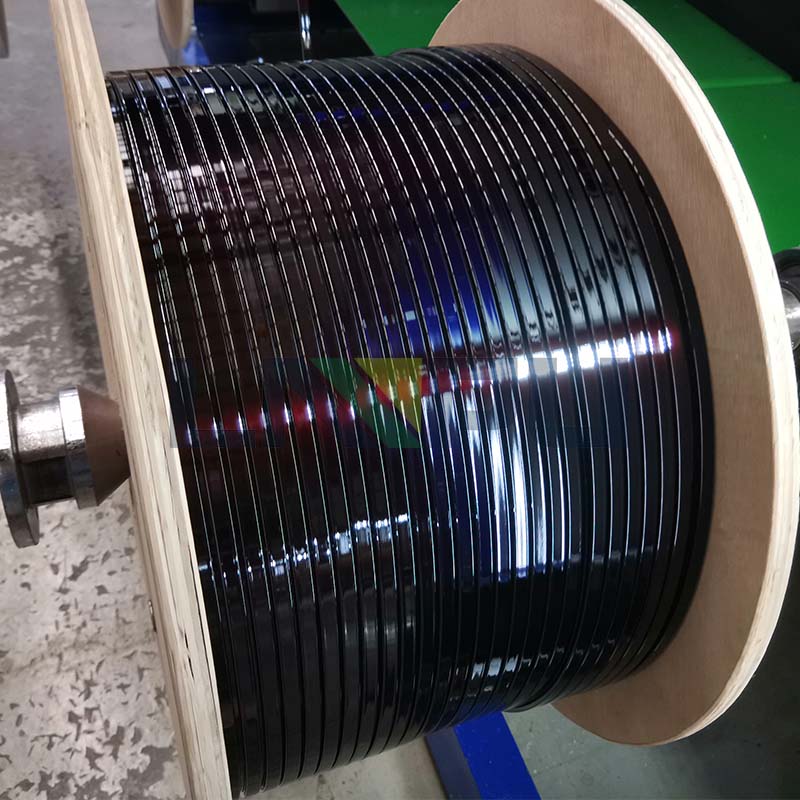

I. Material Characteristics of Aluminum Wire in Motor Windings
1.1 Conductivity Performance
The most frequently discussed performance indicator for aluminum wire in motor applications is conductivity. High-purity electrolytic aluminum (purity ≥ 99.5%), after wire drawing and annealing treatment, can achieve a conductivity of 61% IACS (International Annealed Copper Standard). For comparison, copper conductors have a conductivity of 100% IACS.
This means that, at the same cross-sectional area, the resistance of an aluminum conductor is approximately 1.6 times that of a copper conductor. To achieve the same resistive loss level as copper wire windings, the conductor cross-sectional area of aluminum wire windings needs to be increased by approximately 1.6 times, and the wire diameter by approximately 1.26 times.
This design compensation is entirely feasible in the vast majority of motor applications. Motor stator slots typically have sufficient margin to accommodate aluminum conductors with slightly larger cross-sections. With appropriately increased wire diameter, the resistive losses and copper losses of aluminum wire windings can be comparable to copper wire windings, with minimal difference in motor efficiency and temperature rise performance.
1.2 Lightweight Advantage
The density of aluminum is 2.70 g/cm³, which is only about 30% of the density of copper (8.96 g/cm³). In typical motor windings, using aluminum wire instead of copper wire can achieve a 40-60% reduction in winding weight. For the complete motor, the total weight can be reduced by 15-30%.
The lightweight advantage is particularly critical in the following motor application scenarios:
- New energy vehicle drive motors: Motor weight directly affects vehicle driving range. Aluminum wire motors can significantly reduce the total weight of the drive system and improve energy efficiency. Successful application cases of aluminum wire winding motors have been demonstrated in early electric vehicles from Tesla, GM, and other automakers.
- Aerospace motors: In aircraft and spacecraft, every kilogram of weight reduction has direct economic benefits. Aluminum wire motors have significant advantages in aviation servo motors, environmental control motors, and auxiliary power units.
- Portable power tools: The weight of handheld power tools directly affects operator fatigue and work efficiency. Aluminum wire motors make tools lighter and improve user experience.
- Home appliances: Lightweight washing machines, air conditioning compressors, and other home appliances can reduce transportation costs and installation difficulty.
1.3 Thermal Conductivity Performance
The thermal conductivity of aluminum is 237 W/(m·K), which is lower than copper’s 401 W/(m·K). However, in the actual heat dissipation path of motor windings, heat is mainly conducted through the insulating enamel film, slot insulation materials, and motor housing. The thermal conductivity of the conductor itself has a limited impact on the overall cooling effect.
Studies have shown that in reasonably designed motors, the steady-state temperature rise difference between aluminum wire windings and copper wire windings is typically within 3-8°C. Through appropriate cooling design optimization (such as increasing heat sink area and improving ventilation structure), this gap can be further reduced.
1.4 Corrosion Resistance
Aluminum naturally forms a dense aluminum oxide (Al&sub2;O&sub3;) film in the air, with a thickness of approximately 2-10 nanometers. This oxide film has self-healing properties and can effectively prevent further oxidation. Therefore, the corrosion resistance of aluminum conductors is good in most motor operating environments.
However, in high humidity, high salt spray, or strong acidic/alkaline environments, aluminum’s corrosion resistance is inferior to copper. In such special environments, additional protective measures are required, such as enhanced varnish impregnation treatment or anti-corrosion coatings.
II. Core Performance Data of Aluminum Wire in Motors
2.1 Performance Comparison: Aluminum Wire Motors vs. Copper Wire Motors
The following are typical comparison data between aluminum wire motors and copper wire motors on key performance indicators, based on publicly available industry research results and actual product testing:
| Performance Indicator | Aluminum Wire Motor | Copper Wire Motor | Difference Description |
|---|---|---|---|
| Efficiency | 87-94% | 88-95% | Gap typically 1-2 percentage points |
| Temperature Rise | +75-85K | +70-80K | Gap approximately 3-8°C |
| Power Factor | 0.82-0.90 | 0.83-0.91 | Basically equivalent |
| Starting Torque | 100-110% | 100-105% | Aluminum slightly better (after cross-section compensation) |
| Noise | 60-65 dB | 58-63 dB | Minimal difference |
| Service Life | 15-20 years | 15-20 years | Equivalent when process is correct |
From the data, it can be seen that the differences between aluminum wire motors and copper wire motors in core performance indicators are very small. The efficiency gap is typically only 1-2 percentage points, and in most application scenarios, this gap has a negligible impact on actual operational energy consumption.
2.2 Cost Analysis
The cost advantage of aluminum wire motors is evident:
- Raw material cost: Aluminum prices are approximately 1/4 to 1/5 of copper prices. At equivalent conductivity performance, the conductor material cost of aluminum wire windings can be reduced by 50-70% compared to copper wire windings.
- Transportation cost: 15-30% weight reduction in aluminum wire motors significantly reduces logistics expenses, particularly for large-volume export orders where transportation cost savings are even more pronounced.
- Comprehensive manufacturing cost: Taking a typical 7.5kW three-phase asynchronous motor as an example, using aluminum wire instead of copper wire can save approximately 60-70% in winding material costs and reduce overall manufacturing costs by 15-25%.
From a full life-cycle cost perspective, aluminum wire motors have lower initial procurement costs, negligible differences in operational energy consumption, and comparable maintenance costs, making them more economical in most industrial and home scenarios.
III. Core Application Scenarios of Aluminum Wire in Motors
3.1 HVAC Compressor Motors
Air conditioning compressor and refrigerator compressor motors are the most mature and widely used application scenarios for aluminum wire windings. In these applications, aluminum wire has become an industry standard.
Technical Background: The operating environment of compressor motors is relatively stable, with operating temperatures typically between 60-90°C, well below the thermal limit of aluminum wire. The compressor interior is filled with refrigerant, providing good cooling conditions. Additionally, compressors are weight-sensitive, and the lightweight advantage of aluminum wire directly reduces the overall weight of the compressor.
Industry Validation: Major global compressor manufacturers (such as Embraco, Danfoss, Panasonic, Daikin, etc.) have long been using aluminum wire windings on a large scale in their products. After decades of market validation, the reliability of aluminum wire compressor motors has been fully confirmed.
3.2 Small and Medium Three-Phase Asynchronous Motors
Small and medium three-phase asynchronous motors (0.75kW-75kW) are the fastest-growing application market for aluminum wire windings. In industrial applications with relatively stable loads such as fans, water pumps, and conveyor belts, the performance and reliability of aluminum wire motors have been extensively validated through actual use.
Selection Recommendation: For industrial motors with stable load rates and mild operating environments, aluminum wire is the most cost-effective choice. For motors with frequent starting/stopping, heavy-load starting, or high-temperature environments, the applicability of aluminum wire needs to be evaluated more carefully.
3.3 Single-Phase Induction Motors
Single-phase induction motors in home appliances (washing machines, fans, blenders, etc.) are another important application area for aluminum wire windings. These motors have relatively small power ratings (typically 50W-2kW) and high cost sensitivity, making the cost advantage of aluminum wire even more prominent.
3.4 New Energy Vehicle Drive Motors
New energy vehicle drive motors are the most promising emerging application direction for aluminum wire windings. Although mainstream automakers still primarily use copper wire windings, with increasing power density requirements and cost pressures, the application of aluminum wire in drive motors is accelerating exploration.
Technical Challenges: New energy vehicle drive motors have high power density (from 3kW/kg to 5kW/kg), high operating temperatures (above 180°C), and 800V high-voltage platforms place higher demands on insulation systems. These technical challenges require targeted optimization of aluminum wire windings in materials, processes, and insulation systems.
Development Trends: Some automakers have already begun using aluminum wire windings in entry-level models and auxiliary drive motors. With continued improvements in aluminum wire materials and connection processes, the application proportion of aluminum wire in new energy vehicle drive motors is expected to continue increasing.
3.5 Other Applications
- Water pump motors: Aluminum wire is a common choice for water pump motors in agricultural irrigation, industrial cooling, and building water supply systems.
- Fan motors: HVAC fans, industrial exhaust fans, and cooling tower fan motors have widely adopted aluminum wire windings.
- Generators: Aluminum wire is also used in some windings of small diesel generators and wind turbine generators.
IV. Manufacturing Process Key Points for Aluminum Wire Motors
4.1 Winding Process
The tensile strength of aluminum wire (80-120 MPa) is lower than that of copper wire (200-300 MPa), so special attention must be paid to tension control during the winding process. It is recommended to control the winding tension within 15-25% of the aluminum wire’s breaking strength. Excessive tension can cause aluminum wire stretching deformation or even breakage, while insufficient tension can result in loose windings, affecting the motor’s mechanical strength and cooling effect.
Additionally, aluminum wire has better flexibility than copper wire, which makes it easier to bend and form during the winding process, suitable for stator windings with complex shapes.
4.2 Connection Process
Aluminum wire connection is the most critical technical link in aluminum wire motor manufacturing and the main source of reliability issues in aluminum wire motors. The connection of aluminum wire ends must use reliable process methods:
Ultrasonic Welding: The most reliable aluminum wire connection method. Ultrasonic welding achieves metallurgical bonding between the aluminum wire end and the lead wire in solid state through high-frequency vibration, resulting in low and stable joint resistance that does not degrade due to thermal cycling during long-term operation. This is the preferred process for high-end aluminum wire motor manufacturers.
Dedicated Aluminum Wire Terminal Crimping: Suitable for larger diameter aluminum wires. Using dedicated aluminum wire terminals (typically copper-aluminum transition terminals) for crimping can effectively avoid electrochemical corrosion problems caused by direct aluminum-copper contact.
Aluminum Wire Soldering Paste + Soldering Iron Welding: Suitable for fine diameter aluminum wires, but requires dedicated flux and soldering paste. This method is widely used in small motors and home appliance motors.
Regardless of the connection method used, the core objective is to ensure that the contact resistance of the joint is as low as possible to avoid local overheating and motor failure caused by poor contact during long-term operation.
4.3 Impregnation Treatment
The impregnation treatment of aluminum wire windings is basically the same as copper wire windings. Aluminum enameled wire is compatible with most impregnating resins (such as polyester resin and epoxy resin). Impregnation treatment can further improve the insulation performance, mechanical strength, and moisture resistance of the winding.
For special application environments (such as high humidity and high salt spray), enhanced impregnation processes (such as Vacuum Pressure Impregnation, VPI) can be used to achieve better protection effects.
4.4 Quality Testing
Aluminum wire motors must undergo strict quality testing before leaving the factory:
- Conductor resistivity testing: Ensures aluminum conductor conductivity reaches above 61% IACS.
- Winding DC resistance testing: Verifies that winding resistance meets design requirements.
- Insulation resistance and withstand voltage testing: Ensures winding insulation performance meets standard requirements.
- No-load and load testing: Verifies key performance indicators such as motor efficiency, temperature rise, and power factor.
V. Selection Guide for Aluminum Wire Motors
5.1 Application Scenario Assessment
When selecting aluminum wire motors, it is recommended to evaluate from the following dimensions:
Load Characteristics: For applications with stable loads and infrequent starting/stopping, aluminum wire is the optimal choice. Scenarios with frequent starting/stopping or heavy-load starting require more careful evaluation.
Operating Environment: For standard industrial and home environments, aluminum wire motors are fully applicable. High humidity, high salt spray, or strongly corrosive environments require additional protective measures.
Space Constraints: The volume of aluminum wire windings is slightly larger than copper wire windings (due to increased cross-sectional area). In applications with extremely limited space, it is necessary to confirm whether the installation space is sufficient.
Cost Sensitivity: For cost-sensitive applications, the economic advantage of aluminum wire motors is significant.
5.2 Insulation Class Matching
The insulation class selection for aluminum wire motors is the same as copper wire motors:
- Class B (130°C): Suitable for home appliances and light industrial motors
- Class F (155°C): Suitable for standard industrial motors
- Class H (180°C): Suitable for high-temperature environments and new energy vehicle drive motors
5.3 Supplier Selection
When selecting an aluminum wire motor supplier, it is recommended to focus on the following aspects:
Connection Process Capability: Whether the supplier has mature processes for ultrasonic welding or dedicated terminal crimping, which is the key guarantee for aluminum wire motor reliability.
Quality Testing System: Whether the supplier has comprehensive factory testing capabilities, including conductor resistivity, insulation resistance, withstand voltage testing, and load testing.
Industry Application Experience: The supplier’s actual application cases and customer feedback in the aluminum wire motor field are important references for evaluating their technical strength.
