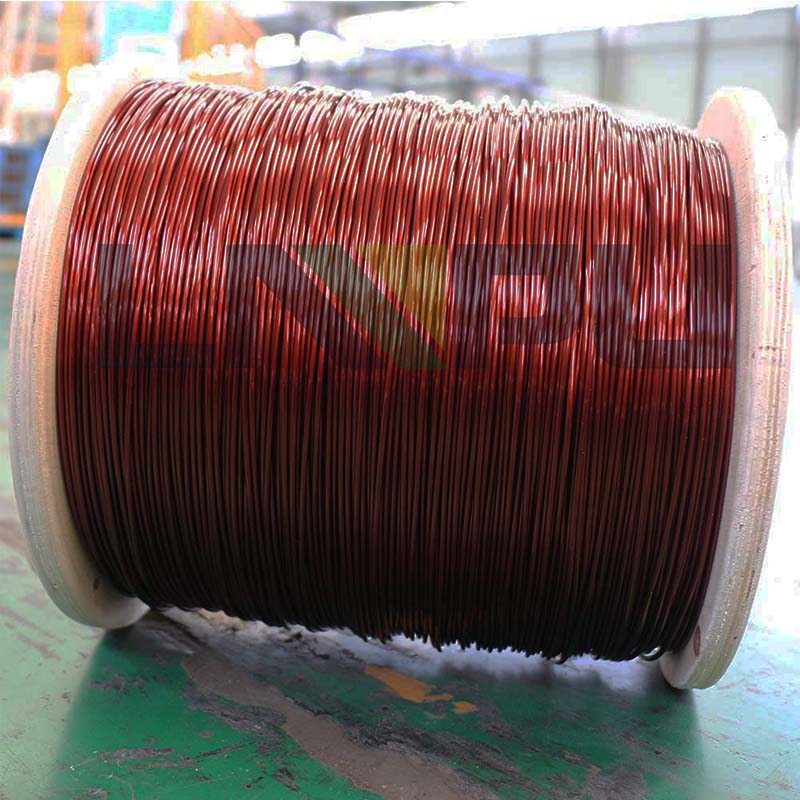

Among the many specifications of magnet wire, 18 AWG (American Wire Gauge) is a widely used standard size. It falls within the medium wire diameter range, capable of meeting certain current-carrying requirements while maintaining good winding flexibility, making it extensively used in distribution transformers, control transformers, and instrument transformer windings.
This article provides a complete technical reference for engineers and procurement personnel on 18 AWG enameled copper wire from four dimensions: specification parameters, enamel film systems, transformer applications, and selection standards.
I. 18 AWG Specification Parameters Explained
1.1 Basic Dimensions
18 AWG is a standard specification in the American Wire Gauge system, with the following core dimensional parameters:
- Conductor Diameter: 1.024mm
- Conductor Cross-Sectional Area: 0.823 mm²
- DC Resistance: 20.95 Ω/km (at 20°C)
This specification falls into a “practical range” — the wire diameter is sufficient to carry moderate current, yet not so thick as to make winding difficult. For small and medium-sized transformer windings, 18 AWG is a highly cost-effective choice.
1.2 Dimensions with Enamel Coating
The final dimensions of enameled copper wire depend on the thickness and type of the insulating enamel film. The outer diameter range for 18 AWG enameled copper wire is approximately as follows:
| Enamel Grade | Enamel Type | Film Thickness (One Side) | Maximum Outer Diameter |
|---|---|---|---|
| Grade 1 (Thin Film) | Polyurethane/Polyester | 0.02-0.03mm | Approx. 1.06-1.08mm |
| Grade 2 (Standard Film) | Polyesterimide | 0.03-0.04mm | Approx. 1.08-1.10mm |
| Grade 3 (Thick Film) | Polyamide-imide | 0.04-0.06mm | Approx. 1.10-1.14mm |
In actual selection, the choice of enamel grade needs to comprehensively consider winding slot space utilization, breakdown voltage requirements, and chemical resistance needs.
1.3 Current Carrying Capacity
The current carrying capacity of 18 AWG enameled copper wire is not a fixed value, but depends on multiple factors:
- Insulation Class: Higher thermal class allows greater temperature rise and higher current carrying capacity
- Cooling Conditions: Current carrying capacity in oil-immersed transformers is higher than in natural air cooling
- Winding Density: Winding tightness affects cooling effectiveness
Generally, under natural air cooling conditions, the safe current carrying capacity of 18 AWG enameled copper wire is approximately 10-16A. In oil-immersed transformers, due to improved cooling conditions, the current carrying capacity can be further increased.
II. Enamel Film Systems for Transformers
2.1 Common Enamel Types
Transformer windings have high performance requirements for enamel film. The enamel film systems commonly used for 18 AWG enameled copper wire in transformer applications include:
Polyesterimide/Polyamide-imide Composite Enamel Film (EI/EIW)
This is the most commonly used enamel film system in transformer windings. Polyesterimide provides the base insulation layer, while polyamide-imide provides the outer protective layer, with a thermal class reaching 180°C (Class H). This enamel film system offers excellent mechanical strength, chemical resistance, and thermal stability, making it the first choice for most transformer applications.
Polyurethane Enamel Film (UEW)
The main advantage of polyurethane enamel film is its solderability — it can be directly soldered without removing the enamel film. This feature has significant advantages in the automated production of certain small transformers and electronic transformers. However, the thermal class of polyurethane enamel film is relatively low (130°C, Class B) and is typically used in applications where operating temperatures are not high.
2.2 Insulation Class Selection
The insulation class of a transformer directly affects its service life and reliability. Recommendations for insulation class selection of 18 AWG enameled copper wire in transformers:
- Class B (130°C): Suitable for small control transformers and electronic transformers
- Class F (155°C): Suitable for distribution transformers and industrial control transformers
- Class H (180°C): Suitable for special transformers in high-temperature environments
III. Applications of 18 AWG Enameled Copper Wire in Transformers
3.1 Distribution Transformers
In 10-35kV voltage level distribution transformers, 18 AWG enameled copper wire is commonly used in medium and low voltage windings. This wire diameter achieves a good balance between winding space utilization and current carrying capacity.
In small single-phase distribution transformers (5-50kVA), 18 AWG is typically one of the standard choices for low voltage windings. Its winding process is mature, production efficiency is high, and the enamel film has good compatibility with transformer oil after oil impregnation.
3.2 Control Transformers
Control transformers are one of the most typical application scenarios for 18 AWG enameled copper wire. These transformers are typically used in industrial control systems to provide isolated low-voltage power supplies for control circuits.
Control transformers typically operate at voltages between 220V-600V, with power ranging from tens of VA to several kVA. The current carrying capacity of 18 AWG is sufficient to meet the needs of most control transformers, while its winding flexibility is also suitable for the manufacturing of multi-layer windings.
3.3 Current Transformers
The secondary windings of current transformers (CT) typically use finer wire diameters, but in certain high current ratio or high-precision instrument transformers, 18 AWG may also be used for primary or secondary windings.
In instrument transformer applications, the electrical insulation performance of the enamel film is a key indicator. The breakdown voltage and dielectric loss factor of 18 AWG Grade 2 or Grade 3 enamel film can meet the insulation requirements of instrument transformers.
3.4 Other Applications
- Relay Windings: 18 AWG is a common specification for small and medium-sized relay coils
- Reactor Windings: Used in reactors for current limiting or filtering
- Power Transformers: High-frequency transformers in switching power supplies (except when Litz wire or film wire is required)
IV. Selection and Process Considerations
4.1 Selection Key Points
When selecting 18 AWG enameled copper wire, the following key indicators need to be considered:
Conductor Resistivity: Should comply with ASTM B3 standard requirements, with resistivity not exceeding 0.01724 Ω·mm²/m at 20°C. Excessive resistivity leads to increased winding losses and reduced transformer efficiency.
Enamel Film Continuity: Tested by spark testing, there should be no breakdown points at rated voltage. This is a basic requirement for ensuring winding insulation reliability.
Flexibility: Tested by mandrel wrapping test, the enamel film should not crack after wrapping around a rod of specified diameter. This is particularly important for automated winding processes.
Solvent Resistance: Transformer windings come into contact with various solvents during the impregnation process. The enamel film should resist erosion from these solvents without softening or dissolving.
4.2 Winding Process
The following matters need attention during the winding process of 18 AWG enameled copper wire:
- Tension Control: Recommended winding tension is 2-4N, avoiding excessive tension that could damage the enamel film or insufficient tension that could result in loose windings
- Neat Layering: Multi-layer windings must ensure neat arrangement, avoiding crossing and overlapping
- Interlayer Insulation: Add insulating paper or insulating film between winding layers when necessary
- Lead Treatment: Welding of winding leads requires appropriate enamel removal processes to avoid damaging the conductor
4.3 Storage Conditions
- Storage Temperature: 15-30°C
- Relative Humidity: ≤ 60%
- Avoid direct sunlight and chemical gas contamination
- Recommended storage period: Use within 12 months from the date of production
V. Conclusion
18 AWG enameled copper wire, with its moderate wire diameter, good current carrying capacity, and mature manufacturing process, occupies an important position in distribution transformers, control transformers, and instrument transformer windings.
When selecting 18 AWG enameled copper wire, the key is to choose the appropriate enamel film system and insulation class based on the specific application scenario. For most transformer applications, polyesterimide/polyamide-imide composite enamel film (EI/EIW, Class H) is the most reliable choice.
